Electric Wire Rod Coil Shot Blasting Machine for High Cleanliness and Descaling Rust
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PMW4350 | Fuel: | Electric |
|---|---|---|---|
| Type: | Rotary Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Rust / Corrosion Proof |
| Condition: | New | Customized: | Customized |
| Work: | Shot Blasting Machine | Transport Package: | Nuded Cargo |
| Specification: | 6.5X5.5X6.0Meter | Trademark: | Pumingwwei |
| Origin: | China | HS Code: | 8424300000 |
| Supply Ability: | 40000 | Customization: | Available |
| After-sales Service: | One Years | Warranty: | One Years |
Product Description

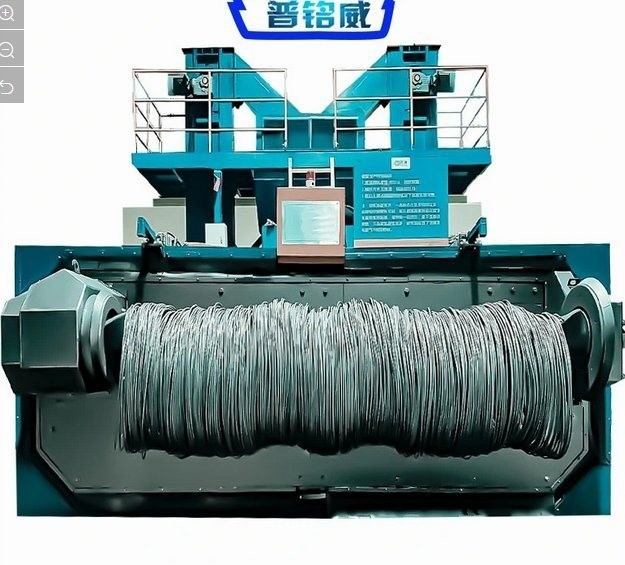

PMW-4350 round wire shot blasting machine

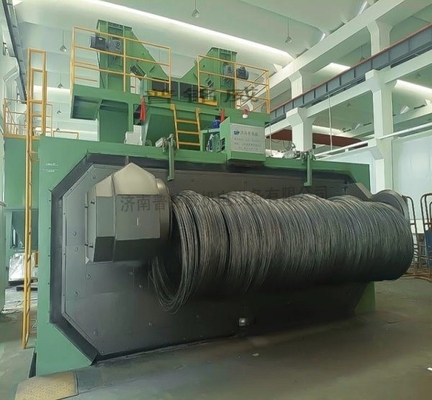

PMW4350 wire rod coil shot blasting machine
Horizontal Revolving Door Wire Rod Shot Blasting Machine for Steel Strand Wire
Reference FOB Price US $127,788.00 / set
Leader Wang / Jinan Pumingwei Electrical Equipment Co. Ltd
552 Gongye Er Road, Mingshui Street, Zhangqiu District, Jinan, Shandong, China
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
| Warranty: | One Year |
|---|---|
| Application: | Wire Surface Derusting |
| Type: | Wire Rod Shot Blasting Machine |
| Cleanliness: | High Cleanliness |
| Automation: | Automatic |
| Certification: | CE, CB, ETL, RoHS, UR |
Product Description
Product Description
Product features
1.Environmentally-friendly technology instead of pickling.
2.Remote control,easy operation.
3.To disperse the wire automatically,even,high effective
and lowl abor intensity for operator.
4.Ultra-low emission:3mg/m³.
5.Widely used in (high,medium,low) carbon steel,alloy
steel,stainless steel and others.
6.Good work environment and negative pressure
within equipment.
7.Can be customized according to customer products.
8.horizontal revolving door type
working principle for PMW4350 wire rod coil shot blasting machine
The equipment is equipped with 6 sets impeller head according to the characteristics of wire rod,which is installed on the rear/side of the shot blasting chamber to clear the wire with 60-90secs cast speed,.By using screw horizontal conveying shot system, high strength belt hoist, steel shot residue separation system, two-stage purification dedusting system (inertia + filter ) and (automatic + manual )HMI electric control system,it makes the workpiece meets efficient shot blasting requirements.
Leader Wang / Jinan Pumingwei Electrical Equipment Co. Ltd
552 Gongye Er Road, Mingshui Street, Zhangqiu District, Jinan, Shandong, China
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Product Parameters
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 20,000-80,000 each year |
| Wire diameter | 8-42mm |
| Equipment size | 6.6*5.5*6m(height on the ground) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about20-40RMB/T |
| Production efficiency | 2-4coils/per hour |
QPY4350 type double position horizontal rotation wire rod shot blasting machine is a special equipment which cleaning wire rod,which convert the kinetic energy of the steel shot in high speed flying into the impact force of workpiece surface to strip the oxide and impurities on base metal by using the plastic deformation of the base metal and its oxide, thereby cleaning the wire rod surface thoroughly.The rust removal level of surface after wire rod postprocessing reaches Sa2.0-2.5.
As the cleaning technology of this equipment,there is no chemical reaction , its byproduct is recyclable metal scrap, so this technology is green environmental protection and no pollution.It has the characteristics of economy, environmental protection and high efficiency compared with the traditional pickling method.Therefore, this equipment is widely used in the spring, bolt, welding rod, welding wire, steel wire rope,steel strand,etc. Which get more customers favor on smoggy day
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 20,000-80,000 each year |
| Wire diameter | 8-42mm |
| Equipment size | 6.6*5.5*6m(height on the ground) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about20-40RMB/T |
| Production efficiency | 2-4coils/per hour |
| Number | Item name | unit | Numeric value | Notes | |
| 1 | Impeller head | quantity | set | 6 | 1.connection technology with electric motor belt 2.wear resistant parts are wear resistant materials 3.frequency impeller head speed control |
| model | / | Q035Z8 | |||
| The max shot blasting rate | kg/min | 6×450=2700 | |||
| Impeller width | mm | 80 | |||
| power | kW | 6×30=180 | |||
| 2 | cabinet | quantity | Piece | 1 | Protection liner plate is wear resistant steel plate |
| Wearing plate | / | Wearable alloy material | |||
| 3 | curtain separator | quantity | set | 1 | |
| Separation volume | t/h | 120 | |||
| Separation rate | % | 99.9 | |||
| form | adjustable curtain air separation | ||||
| 4 | Bucket type lifter | Quantity | set | 2 | 1.Bending composite shell technology |
| Lifting capacity | t/h | 60+60 | |||
| Lifting speed | m/s | 1.4 | |||
| power | kW | 11 | |||
| 5 | screw conveyor at the bottom | quantity | Set | 2 | |
| Conveying capacity | t/h | 120 | |||
| Screw diameter | mm | 250 | |||
| power | kW | 6 | |||
| 6 | Steel shot controller | Quantity | set | 6 | |
| Rate of flow(max) | kg/min | 6×450 | |||
| Control type | / | ADJ | |||
| Control type | / | Air operated | |||
| 7 | Total power | kW | 197 | ||
Product Description
The cleaning efficiency of the round wire shot blasting machine is high. By changing the box type external shot blasting machine cleaning chamber of the wire blasting machine to an internal shot blasting machine cleaning chamber, the shot hits the wire workpiece at close range.
Main features:
1. High cleaning efficiency. By changing the box type external shot blasting machine cleaning room of the wire blasting machine to an internal shot blasting machine cleaning room, the shot hits the wire workpiece at close range, greatly increasing the cleaning and rust removal efficiency and effectiveness, solving the problems of low shot utilization rate, slow cleaning speed, and difficulty in connecting with other equipment in the original technology.
2. Good sealing effect. Considering the situation of shot flying during the shot blasting cleaning process, our company's wire material shot blasting machine is equipped with a sealed box with multi-layer resin rubber curtains and sealing brushes at the inlet and outlet of the shot blasting chamber workpiece. That is, before the workpiece runs to the cleaning station for cleaning, the resin rubber plate and brush seal and cover the splashing shot inside the chamber, effectively preventing the shot from flying out from inside the chamber.
3. Safe, environmentally friendly, and pollution-free. The dust collector, elevator, bottom spiral conveyor, and maintenance door of the wire blasting machine produced by our company are all interlocked with the opening of the shot blasting machine. When the shot blasting machine is opened and operated smoothly and reliably in sequence, the shot gate can only be opened. The shot in the separator continuously enters the shot blasting machine and is thrown out by high-speed rotating blades, hitting the surface of the wire, cleaning the oil dirt and rust on the surface of the wire, and the wire presents a bright metallic luster. The successful development of this equipment has enabled rapid transportation of wire workpieces, as well as continuous feeding, unloading, and shot blasting. It has changed the current situation of fastener enterprises that cannot pass the environmental impact assessment due to environmental pollution caused by acid pickling and rust removal, and cannot be treated.
