Experience the Best Performance with Customizable Wire Shot Blasting Machine 5500
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | 5500 | Derusting Cost: | 18-35RMB/T |
|---|---|---|---|
| Feature: | Rust / Corrosion Proof | Customized: | Customized |
| Wire Loss: | 0.2-0.3% | Transport Package: | Sea Transportation |
| Specification: | 12.5 * 5.5 * 6.4 Meters | Trademark: | Pumingwei |
| Origin: | Jinan, China | Supply Ability: | 120 |
| Customization: | Available | After-sales Service: | Year |
| Warranty: | Oneyear | ||
Product Description
PMW5500 type wire rod shot blasting machine is special cleaning equipment of wire rod,and using shot blasting technology to clean wire surface scale and squamous layer.the rust removal level of surface can reach Sa2.0-2.5 after the workpiece is cleared .It has characteristics of economy,pro-environment and high-efficiency compared with pickling way and without scratch on the surface of wire.
The equipment adopts a unique "turnover door+pin-ended" to carry the wire rod working mode. Simply supported shaft (pin ended)is made of special alloy steel,and the main shaft has the function of automatic dispersing the wire ,it is composed of organic whole in the normal working with pin-ended(simply supported shaft), the design of simply supported shaft greatly improves the service life of the main shaft compared with cantilever shaft .It is also a patented product of our company (patent No. : 201620372463.5). In the process of shot, the device makes wire operate compound action of up and down + side to side + positive and negative rotation to achieve the effect of thorough cleaning. The reasonable arrangement of impeller head have resulted in effective blasting of steel shot in the inner and outer surfaces of wire,the machine is controlled by PLC, and the operation is convenient and reliable.

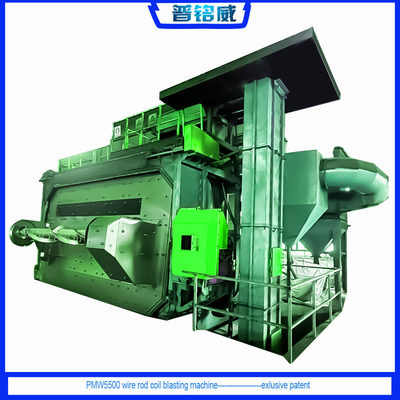

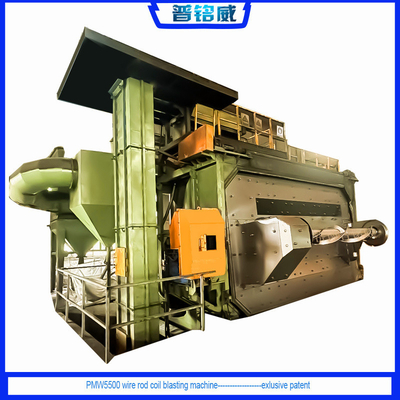

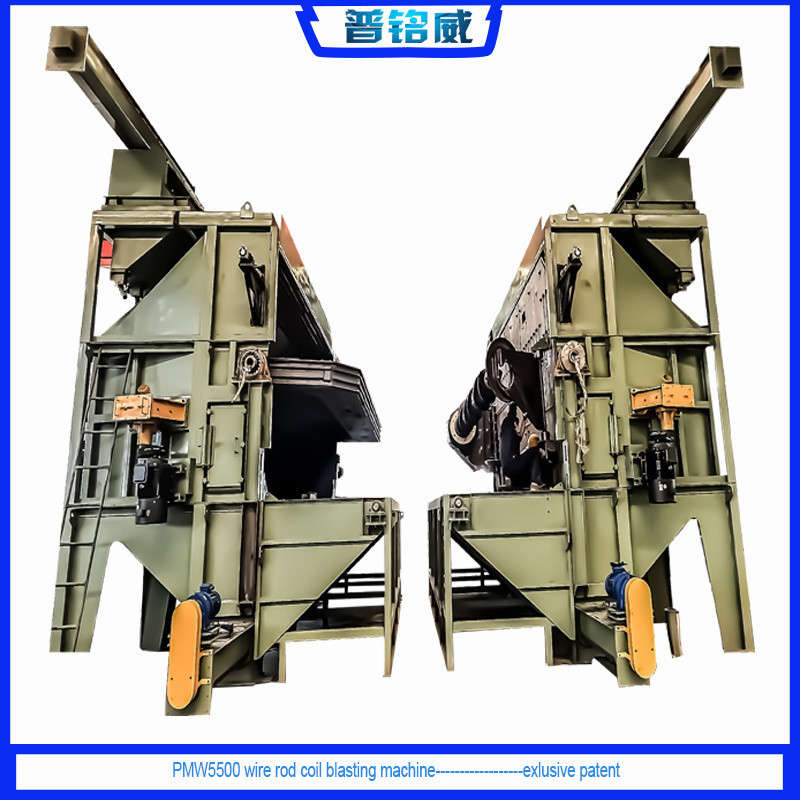

PMW5500 wire rod shot blasting machine
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 60,000-120,000 each year |
| Wire diameter | 5.5-42mm |
| Equipment size | 12.5*5.5*6.4m(overground height) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about18-35RMB/T |
| Production efficiency | 4-9coils/per hour |
Impeller head system date
| Number | Item name | unit | Numeric value | Notes | |
| 1 | Impeller head | quantity | set | 8 | 1.connection technology with electric motor belt 2.wear resistant parts are wear resistant materials 3.frequency impeller head speed control |
| model | / | Q035 | |||
| The max shot blasting rate | kg/min | 8×450=3600 | |||
| Impeller width | mm | 80 | |||
| power | kW | 8×30=240 | |||
| 2 | cabinet | quantity | Piece | 1 | Protection liner plate is wear resistant steel plate |
| Wearing plate | / | Wearable alloy material | |||
| 3 | curtain separator | quantity | set | 2 | |
| Separation volume | t/h | 2*120=240 | |||
| Separation rate | % | 99.9 | |||
| form | adjustable curtain air separation | ||||
| 4 | Bucket type lifter | Quantity | set | 2 | 1.Bending composite shell technology |
| Lifting capacity | t/h | 240 | |||
| Lifting speed | m/s | 1.22 | |||
| power | kW | 2*11 | |||
| 5 | screw conveyor at the bottom | quantity | Set | 2 | Equipping with inspection status |
| Conveying capacity | t/h | 240 | |||
| Screw diameter | mm | 320 | |||
| power | kW | 2*5.5 | |||
| 6 | Steel shot controller | Quantity | set | 8 | |
| Rate of flow(max) | kg/min | 8×450 | |||
| Control type | / | ADJ | |||
| Control type | / | Air operated | |||
| 7 | power | kW | 165 | ||
