Customizable Special Shot Blasting Machine for Steel Rust Removal in Automotive Parts
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | Q37 | Fuel: | Electric |
|---|---|---|---|
| Type: | Hook Type Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Non-Toxic |
| Condition: | New | Customized: | Customized |
| Colour: | Customizable | Production: | Customizable |
| Efficiency: | Tall | Use To: | Steel Rust Removal |
| Transport Package: | Yes | Specification: | 4.809*2.825*7.118 |
| Trademark: | Pumingwei | Origin: | Jinan, China |
| Supply Ability: | 100 Units Per Year | Customization: | Available |
| After-sales Service: | After Sales Worry Free | Warranty: | A Year |
Product Description

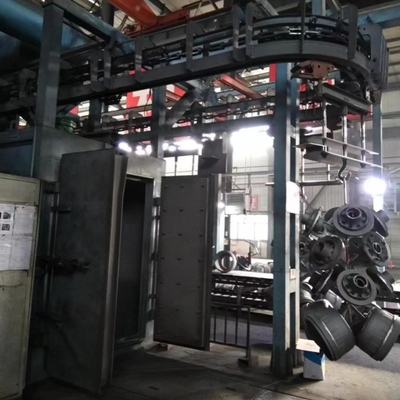

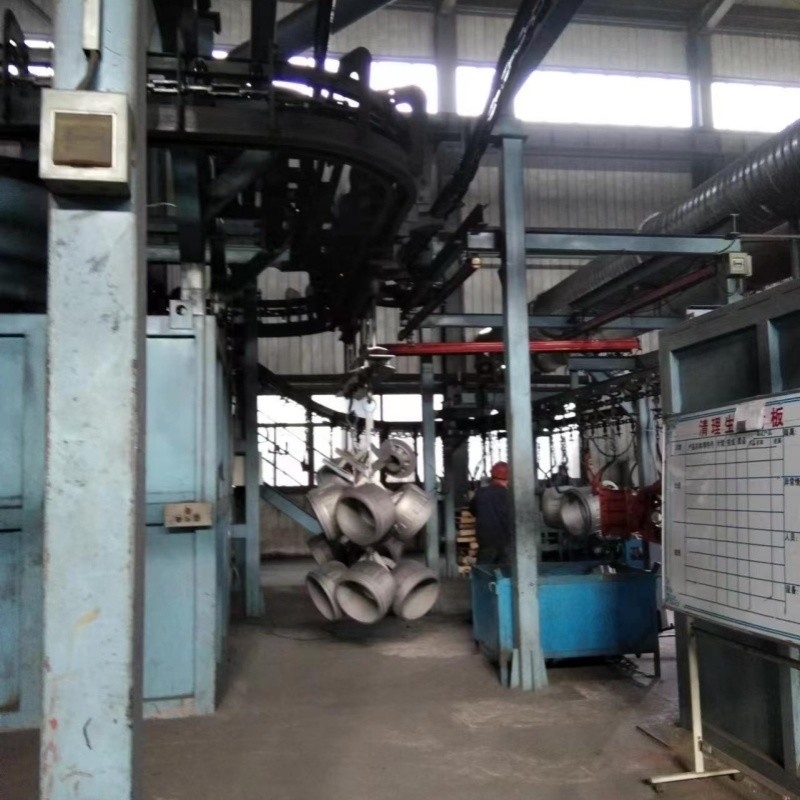

Q3710series hook shot blasting machine
Hook type shot blasting machine is divided into two forms,:single hook type and double hook suitable for surface cleaning or strengthening with small and medium-sized castings, forgings, welding parts, heat treatment parts in various industries .especially suitable for cleaning and strengthening for fear of collision parts. It adopts the forms of no pit structure with compact structure, easy installation and smooth operation.
The chamber adopts a totally enclosed structure without steel shot splashing phenomenon, and there is wear resistant alloy cast iron protection plate inside chamber.

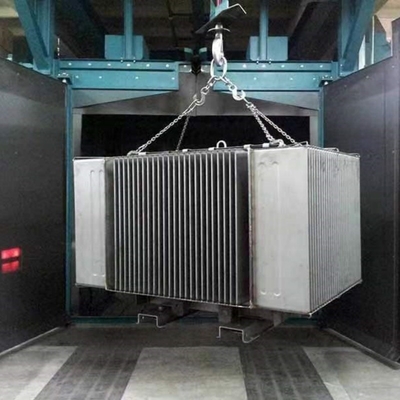

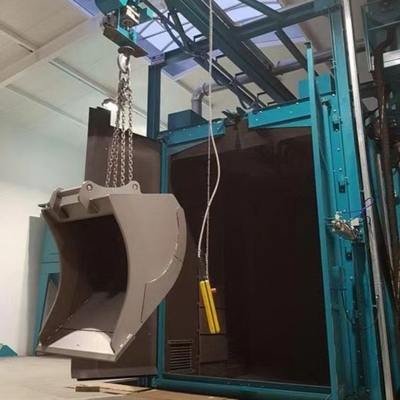

The electric hoist is used to realize the loading and unloading, lifting and walking of the workpiece, and positive and negative rotation of the workpiece inside chamber is available by the auto rotation device.
| Parameter Type | Q375 | Q376 | Q378 | Q378A | Q378E | Q379 | Q3710 |
| The max single hook weight/kg | 500 | 500 | 800 | 800 | 800 | 1000 | 1000 |
| The max castings size/mm | 1000*1400 | 800*1100 | 800*1500 | 1000*1800 | 1400*1500 | 900*1500 | 1100*2500 |
| Cleaning room size/m | 1.6*1.6*2.15 | 1.6*1.6*2.15 | 1.6*1.6*2.15 | 2.0*2.0*2.75 | 2.0*2.0*2.2 | 2.0*2.0*2.1 | 2.0*2.0*2.5 |
| Production rate | 4-15 | 6-15 | 4-9 | 6-12 | 4-15 | 6-15 | 6-15 |
| Dedusting air volume(m3/h) | 9700 | 2000 | 6000 | 7500 | 5500 | 6600 | 9900 |
| processing capacity of separating system/(t/h) | 20 | 15 | 25 | 25 | 40 | 35 | 45 |
| Impeller head quantity | 2 | 1 | 2 | 2 | 2 | 2 | 3 |
| Single abrasive flow rate(kg/min) | 140 | 220 | 200 | 200 | 240 | 250 | 230 |
| Single power/kw | 7.5 | 11 | 11 | 11 | 15 | 15 | 11 |
| Total power/kw | 27.3 | 20 | 27.4 | 30.5 | 39.6 | 35.6 | 55.5 |
| Overall dimension/mm | 6.37*3.3*5.5 | 6.3*3.2*4.8 | 4.4*3.93*6.42 | 6.0*3.76*7.308 | 5.6*6.1*6.65 | 4.47*3.315*5.365 | 4.809*2.825*7.118 |
1. Available for large inner cleaning space, overall cohesiveness of design . Can be designed and manufactured according to the demands
2. Can be used for different kinds of workpieces.
3. Widely used in cleaning and strengthening for forging parts building,chemical,motor and small castings.
4. The pre-heating and drying part adopt various heating modes, such as electricity, fuel gas, fuel oil and so on.
5. Can be equipped as a part of a processing line.
6. Complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced level.
