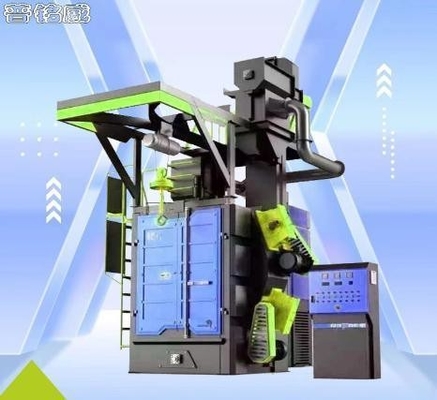

800*1100mm Customized Hook Shot Blasting Machine for Customized Solutions
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | Q376 | Fuel: | Electric |
|---|---|---|---|
| Type: | Rotary Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Rust / Corrosion Proof |
| Condition: | New | Customized: | Customized |
| Transport Package: | Cargo | Specification: | 800*1100mm |
| Trademark: | Pumingwwei | Origin: | China |
| HS Code: | 8424300000 | Supply Ability: | 300 |
| Customization: | Available | After-sales Service: | One Years |
| Warranty: | One Years | ||
Product Description
Custome Hook Shot Blasting Machine for Castings
Reference FOB Price US $5,000.00 / Piece| After-sales Service: | One Year |
|---|---|
| Warranty: | One Year |
| Application: | Surface Derusting |
| Fuel: | Electric |
| Type: | Hook Type Abrator |
| Cleanliness: | High Cleanliness |
Product Description

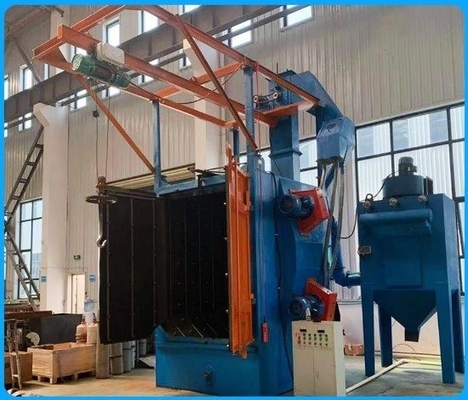

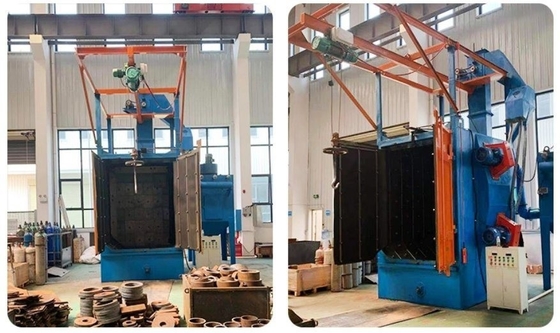

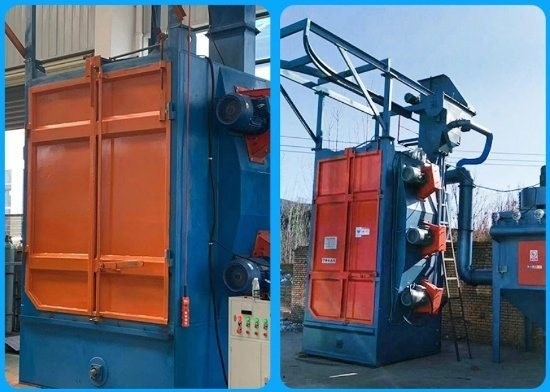

Hook type shot blasting machine is divided into two forms,:single hook type and double hook suitable for surface cleaning or strengthening with small and medium-sized castings, forgings, welding parts, heat treatment parts in various industries .especially suitable for cleaning and strengthening for fear of collision parts. It adopts the forms of no pit structure with compact structure, easy installation and smooth operation.

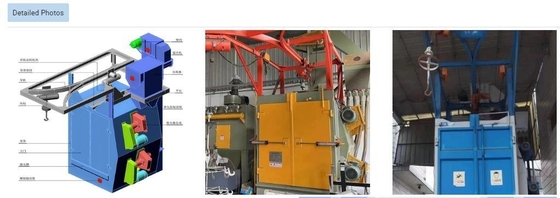

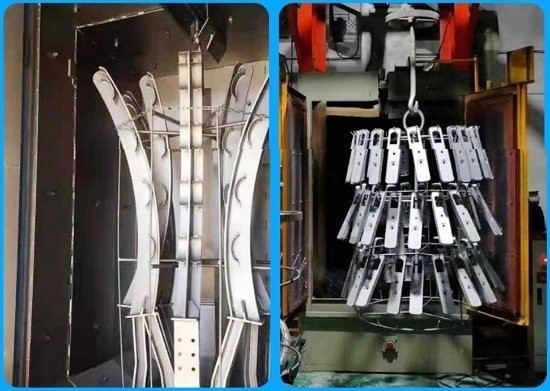

The chamber adopts a totally enclosed structure without steel shot splashing phenomenon, and there is wear resistant alloy cast iron protection plate inside chamber.The electric hoist is used to realize the loading and unloading, lifting and walking of the workpiece, and positive and negative rotation of the workpiece inside chamber is available by the auto rotation device.
Paramete Type | Q376 | ||||||
| The max single hook weight/kg | 500 | ||||||
| The max castings size/mm | 800*1100 | ||||||
| Cleaning room size/m | 1.6*1.6*2.15 | ||||||
| Production rate | 6-15 | ||||||
| Dedusting air volume(m3/h) | 2000 | ||||||
| processing capacity of separating system/(t/h) | 15 | ||||||
| Impeller head quantity | 1 | ||||||
| Single abrasive flow rate(kg/min) | 220 | ||||||
| Single power/kw | 11 | ||||||
| Total power/kw | 20 | ||||||
| Overall dimension/mm | 6.3*3.2*4.8 |
