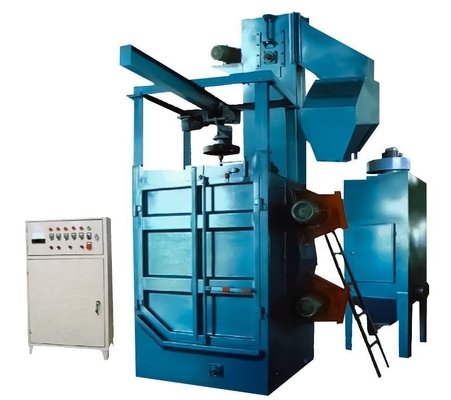

Derusting Q379 Hook Type Shot Blasting Machine for Forging Parts and Small Castings
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | Q379 | Fuel: | Electric |
|---|---|---|---|
| Type: | Crawler Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Derusting And Efficiency |
| Condition: | New | Customized: | Customized |
| Weight: | 2500kg | Factory Experience: | 20 Years |
| Terms Of Payment: | T/T And So On | Size: | 4470*3315*5365mm |
| Hanger: | Single And Double Hook | Transport Package: | Foam, Pallet And Plastic Film |
| Specification: | International Standard Or Customized | Trademark: | Pumingwei |
| Origin: | China | Supply Ability: | 500 Sets Per Years |
| Customization: | Available | After-sales Service: | Technical Support For Customer |
| Warranty: | One Year | ||
Product Description

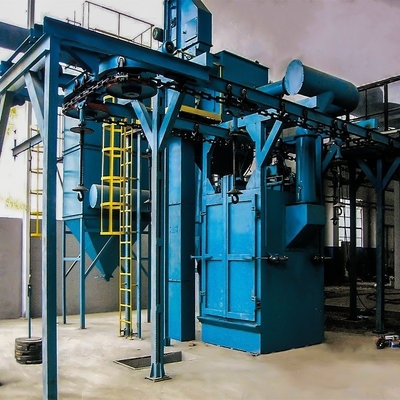

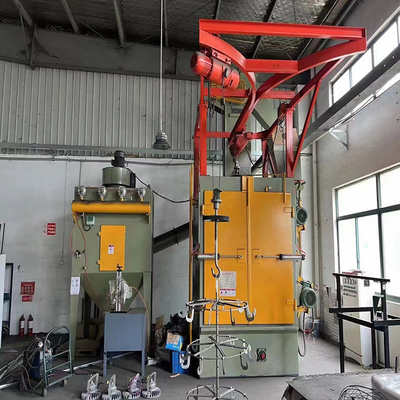

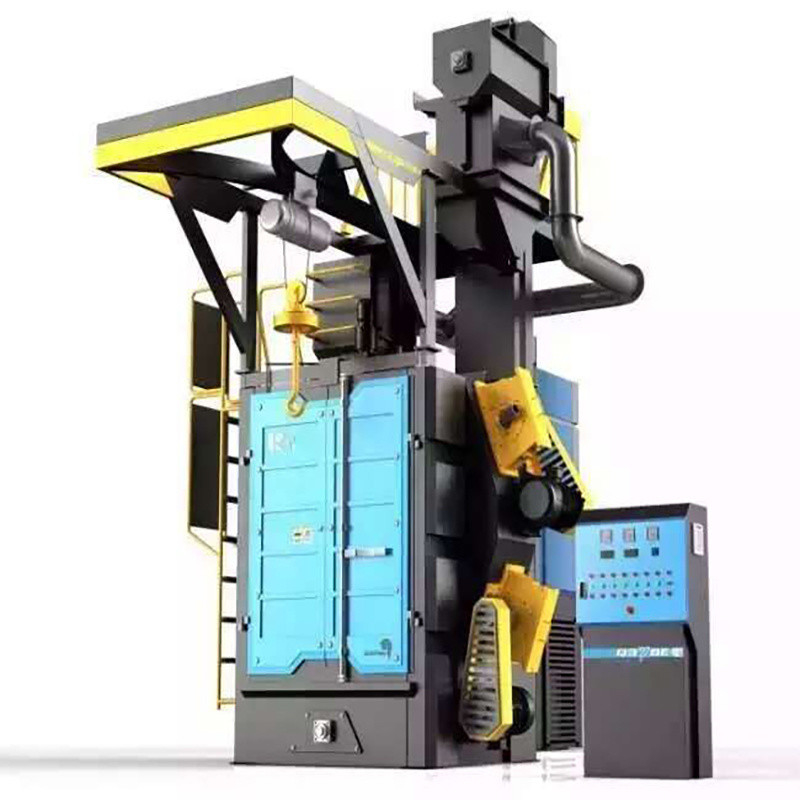

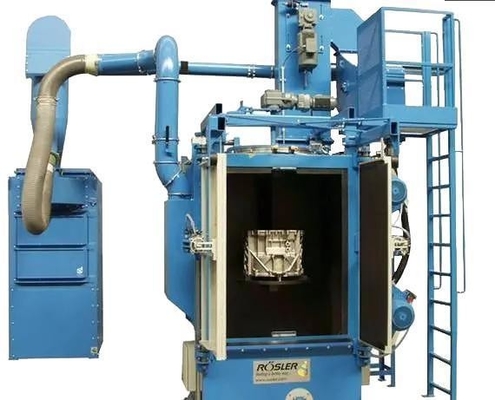

Q37series hook shot blasting machine
This series hook type shot blasting machine is suitable for surface cleaning or strengthening treatment of small casting and forgings in industry for casting,building,chemical,motor and machine tool,mainly used for devoted to all types of small quantity surface cleaning and shot-blasting strengthening of castings,forging and steel structure parts and other spare parts to clear little viscous steel grit,grit core and oxide skin,also suitable for surface cleaning and strengthening on heat treatment parts,which is particularly useful for cleaning of tiny and thin wall parts which is less vulnerable to impact.
| Parameter Type | Q375 | Q376 | Q378 | Q378A | Q378E | Q379 | Q3710 |
| The max single hook weight/kg | 500 | 500 | 800 | 800 | 800 | 1000 | 1000 |
| The max castings size/mm | 1000*1400 | 800*1100 | 800*1500 | 1000*1800 | 1400*1500 | 900*1500 | 1100*2500 |
| Cleaning room size/m | 1.6*1.6*2.15 | 1.6*1.6*2.15 | 1.6*1.6*2.15 | 2.0*2.0*2.75 | 2.0*2.0*2.2 | 2.0*2.0*2.1 | 2.0*2.0*2.5 |
| Production rate | 4-15 | 6-15 | 4-9 | 6-12 | 4-15 | 6-15 | 6-15 |
| Dedusting air volume(m3/h) | 9700 | 2000 | 6000 | 7500 | 5500 | 6600 | 9900 |
| processing capacity of separating system/(t/h) | 20 | 15 | 25 | 25 | 40 | 35 | 45 |
| Impeller head quantity | 2 | 1 | 2 | 2 | 2 | 2 | 3 |
| Single abrasive flow rate(kg/min) | 140 | 220 | 200 | 200 | 240 | 250 | 230 |
| Single power/kw | 7.5 | 11 | 11 | 11 | 15 | 15 | 11 |
| Total power/kw | 27.3 | 20 | 27.4 | 30.5 | 39.6 | 35.6 | 55.5 |
| Overall dimension/mm | 6.37*3.3*5.5 | 6.3*3.2*4.8 | 4.4*3.93*6.42 | 6.0*3.76*7.308 | 5.6*6.1*6.65 | 4.47*3.315*5.365 | 4.809*2.825*7.118 |
Pumingwei hook type shot blasting machine is professional,unque and irreplaceable
1.Supplier ensure that the name, model, specification and quantity are consistent with technical agreement ,and we
make sure that all machine is new with qualifying product through perfect technology and installation,the quality is
stable and reliable.There are no defects in design, material and technology,which is suitable for proposal of demander.
And meets the standard of national industry.
2.Arrange for engineer or skilled labour to installation and debugging of equipment in overseas.
( except force majeure, inappropriate operation and the quick-wear parts ).
3.In order to ensure a good quality, every machine in the factory will be strict calibration and debugging before they
leave the factory.
4.We will direct the installation and operation of the equipment, and train operators for customer.
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. can provide our customers with exclusive and unique solution by our well-trained and professional engineers and staff.
5. Special discount and protection of sales will be provided to our distributor.
6. Professional factory: We are largest manufacturer, specializing in producing all kinds of Shot Blasting Machine & Metal Abrasive in China, competitive with good quality products.
7. As an honest and more experience seller, we always use superior raw material, advanced machines, skilled technicians to ensure that our products will be designed in high quality and stable performance
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
1. Available for large inner cleaning space, overall cohesiveness of design . Can be designed and manufactured according to the demands
2. Can be used for different kinds of workpieces.
3. Widely used in cleaning and strengthening for forging parts building,chemical,motor and small castings.
4. The pre-heating and drying part adopt various heating modes, such as electricity, fuel gas, fuel oil and so on.
5. Can be equipped as a part of a processing line.
6. Complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced level.
1. This machine adopts a pitless structure, which is easy to install and reduces investment costs.
2. Compact structure, high production efficiency, good cleaning quality, safe and reliable work,and stable operation.
3. The hook has three functions: automatic lifting, moving and rotation in the cabinet
4. Use best globa brands electric with the electrical components of this equipment
