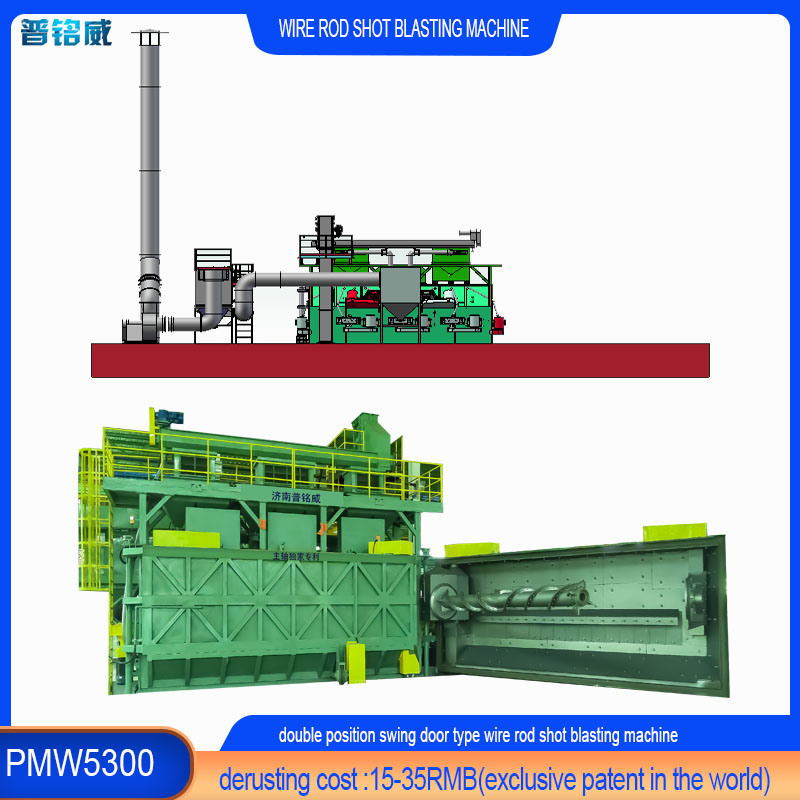

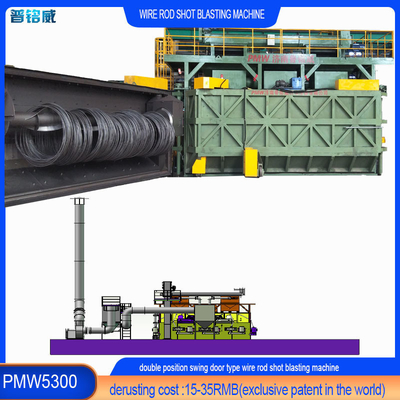

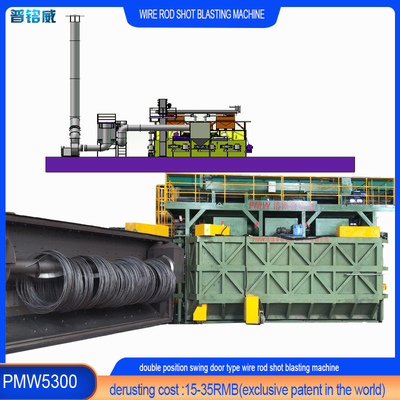

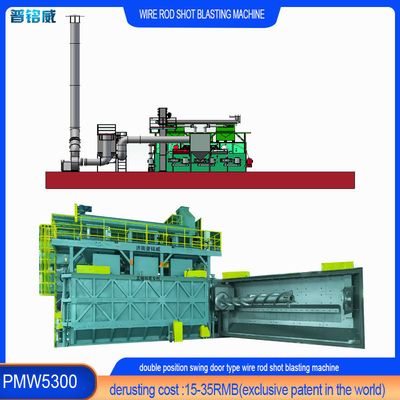

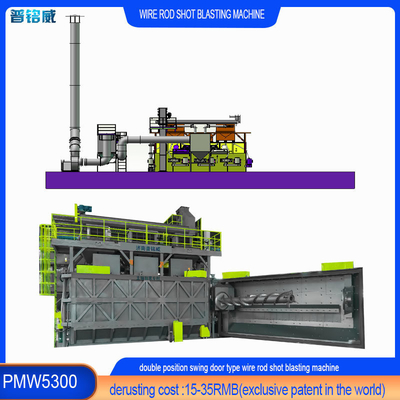

High Cleanliness Wire Rod Coil Shot Blasting Machine For Multiple Types From Pumingwei
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PMW5300 | Type: | Wire Rod Coild Shot Blasting Machine |
|---|---|---|---|
| Cleanliness: | High Cleanliness | Automation: | Automatic |
| Feature: | Wire Surface Derusting | Condition: | New |
| Customized: | Customized | Impeller Head Power: | 30kw/Set |
| Derusting Cost: | 15-35RMB/T | Production Efficiency: | 4-10coils Per Hour |
| Wire Loss: | 0.2-0.3% | Wire Range: | 5.5-42mm |
| Transport Package: | Nuded Cargo With Foam And So On | Specification: | 16.8*12.4*5.8m |
| Trademark: | Pumingwei | Origin: | China |
| Supply Ability: | 30sets/Year | Customization: | Available |
| Warranty: | One Year | Application: | Wire Metal Surface |
Product Description
PMW5300 type wire rod coils shot blasting machine is a special equipment which clean wire surface,which convert the kinetic energy of the steel shot in high speed flying into the impact force of workpiece surface to strip the oxide and impurities on base metal by using the plastic deformation of the base metal and its oxide, thereby cleaning the wire rod surface thoroughly.The rust removal level of surface after wire rod postprocessing reaches Sa2.0-2.5. As the cleaning technology of this equipment,there is no chemical reaction , its byproduct is recyclable metal scrap, so this technology is green environmental protection and no pollution.It has the characteristics of economy, environmental protection and high efficiency compared with the traditional pickling method.Therefore, this equipment is widely used in the spring, bolt, welding rod, welding wire, steel wire rope,steel strand,etc. Which get more customers favor on smoggy day.
The equipment is composed of following system
1.impeller room system
2.bottom screw conveying system
3.hoister system
4.distribution material spiralscrew system
5.crushed shot separation system
6.shot control system
7.impeller head system
8.gate system
9.dedusting system
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 70,000-150,000 each year |
| Wire diameter | 5.5-42mm |
| Equipment size | 16.8*12.4*5.8m(overground height) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about15-35RMB/T |
| Production efficiency | 4-10coils/per hour |
working principle for PMW5300 wire rod coil shot blasting machine
The equipment adopts the unique double "side hung gate + pin-ended "to carry the form of the wire rod, which is the patent product of our company (the patent number:(201520774091.4),and achieve two workpieces alternant working with double-position form.
After simple supported shaft of the wire rod enters the blasting room,steel shot controller will be opened and convey steel shot to rotating impeller head in the meantime,throw out the steel shot rapidly to hit wire rod by certain angles,which cause its oxide to loose and fall out At the same time ,perform compound action of"ups and down, right and left positive and negative rotation" by programmed program to beat the inside and outside surface of wire rod effectively through steel shot . The reasonable distribution of the 7 impeller head cause the all coil rod without corners.
4.No strong magnetic interference source around the workshop 5.Maintain the equipment according to the manufacturer's instruction
It mainly consists of blades, impellers/vane wheel, paddle wheels, directional sleeves/control cage, motors, housings/cabinet, liner panels, shot inlet pipes, bottom plates, and shock-absorbing rubber plates.
Trade information 1.Production time: 20-40 days or half years according to different type.
2.the time of installation and debugging: 10-15 days.
3.Installation and debugging: We will dispatch 1-2 technicians to help with machine installation and debugging, customer pays for their tickets, hotel and diet.
4. Warranty time: 12 months from date of debugging completion, but not exceed18 months from date of delivery.
5. Payment term: 30% as prepayment, balance 70% before delivery or L/C at sight.
6. English documents: including total installation drawing, pit design drawing, instruction book, circuit diagram drawing and notice, etc.
