Wire Products Descaling and Shot Peening Electric Wire Rod Coil Shot Blasting Machine
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PMW3850 | Fuel: | Electric |
|---|---|---|---|
| Type: | Wire Rod Coild Shot Blasting Machine | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Rust / Corrosion Proof |
| Condition: | New | Customized: | Customized |
| Impeller Head Power: | 30kw/Set | Derusting Cost: | 20-40RMB/T |
| Production Efficiency: | 3-8coils Per Hour | Wire Loss: | 0.2-0.3% |
| Update Version: | Pmw 5500 | Production Cycle: | One Month |
| Transport Package: | Nuded Cargo | Specification: | 9.5*6.1*6.9m |
| Trademark: | Pumingwei | Origin: | China |
| Supply Ability: | 500 Sets Per Years | Customization: | Available |
| After-sales Service: | One Year | Warranty: | One Year |
Product Description

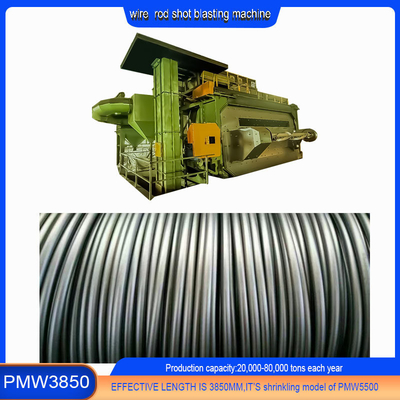

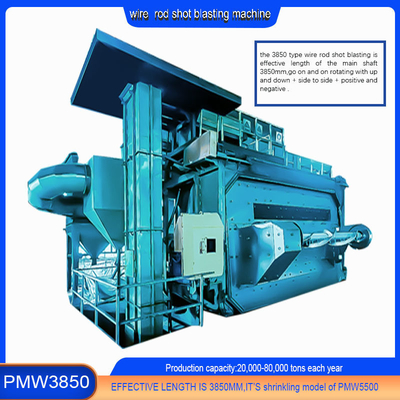

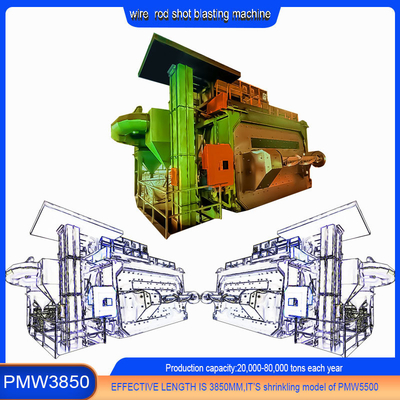

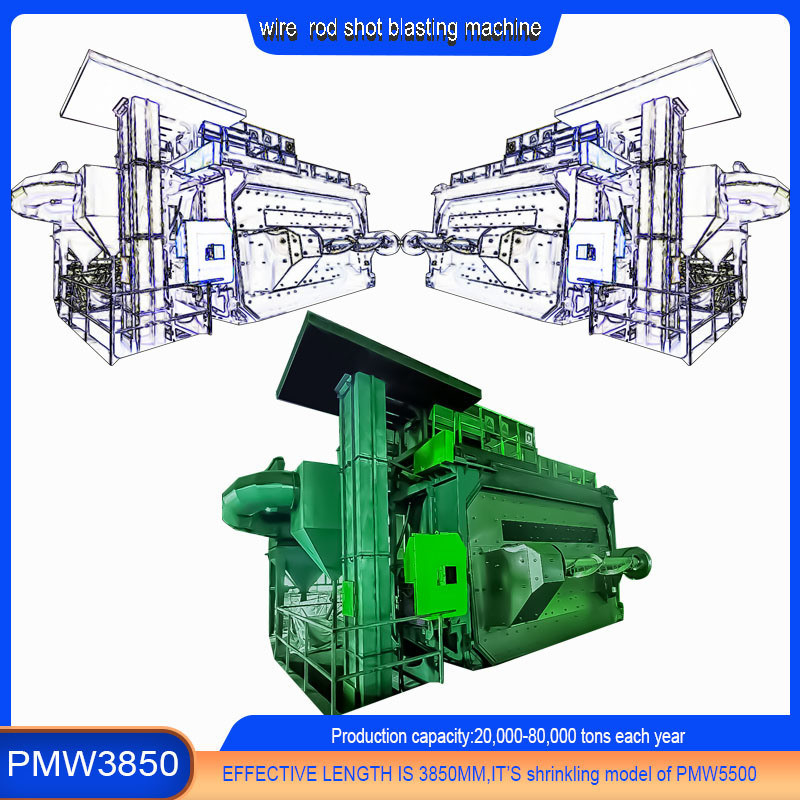

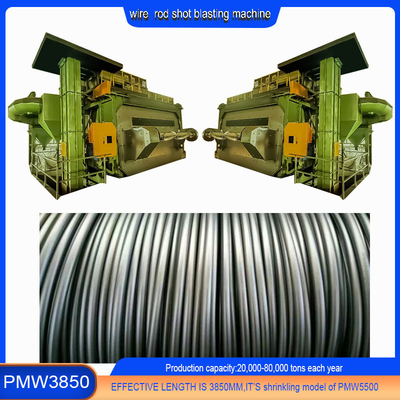

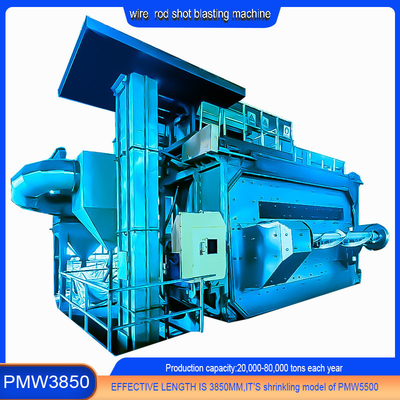

PMW3850 type wire rod shot blasting machine is special cleaning equipment of wire rod,and using shot blasting technology to clean wire surface scale and squamous layer.the rust removal level of surface can reach Sa2.0-2.5 after the workpiece is cleared .It has characteristics of economy,pro-environment and high-efficiency compared with pickling way and without scratch on the surface of wire.
The equipment adopts a unique "turnover door+pin-ended" to carry the wire rod working mode. Simply supported shaft (pin ended)is made of special alloy steel,and the main shaft has the function of automatic dispersing the wire ,it is composed of organic whole in the normal working with pin-ended(simply supported shaft), the design of simply supported shaft greatly improves the service life of the main shaft compared with cantilever shaft .It is also a patented product of our company (patent No. : 201620372463.5). In the process of shot, the device makes wire operate compound action of up and down + side to side + positive and negative rotation to achieve the effect of thorough cleaning. The reasonable arrangement of impeller head have resulted in effective blasting of steel shot in the inner and outer surfaces of wire,the machine is controlled by PLC, and the operation is convenient and reliable.
1.Environmentally-friendly technology instead of pickling.The equipment adopts a unique "turnover door+pin-ended" to carry the wire rod working mode. Simply supported shaft (pin ended)is made of special alloy steel,and the main shaft has the function of automatic dispersing the wire ,it is composed of organic whole in the normal working with pin-ended(simply supported shaft), the design of simply supported shaft greatly improves the service life of the main shaft compared with cantilever shaft .It is also a patented product of our company (patent No. : 201620372463.5). In the process of shot, the device makes wire operate compound action of up and down + side to side + positive and negative rotation to achieve the effect of thorough cleaning. The reasonable arrangement of impeller head have resulted in effective blasting of steel shot in the inner and outer surfaces of wire,the machine is controlled by PLC, and the operation is convenient and reliable.
working principle for PMW3800 wire rod coil shot blasting machine
2.Remote control,easy operation.
3.To disperse the wire automatically,even,high effective
and lowl abor intensity for operator.
4.Ultra-low emission:3mg/m³.
5.Widely used in (high,medium,low) carbon steel,alloy
steel,stainless steel and others.
6.Good work environment and negative pressure
within equipment.
7.Can be customized according to customer products.
8.effective length is 3850mm(its updated version is PMW5550
The equipment is equipped with 8 sets impeller head according to the characteristics of wire rod,which is installed on the rear/side of the shot blasting chamber to clear the wire with 60-90secs cast speed,.By using screw horizontal conveying shot system, high strength belt hoist, steel shot residue separation system, purification dedusting system of two-stage polyester fiber filter (inertia + filter ) and (automatic + manual )HMI electric control system,it makes the workpiece meets efficient shot blasting requirements
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 40,000-100,000 each year |
| Wire diameter | 8-42mm |
| Equipment size | 9.5*6.1*6.9m(overground height) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about20-40RMB/T |
| Production efficiency | 3-8coils/per hour |
