10 Tons Roller Table Shot Blasting Machine for Stainless Steel Plate Surface Cleaning
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | Q6915 | Material: | Stainless Steel |
|---|---|---|---|
| Weight: | 10 Tons | Efficiency: | 10 Tons Per Hour |
| Operation Convenience: | Remote Control Operation | Maximum Load: | 20 Ton |
| Transport Package: | Sea Transportation | Specification: | 10meters Long And3meters Wide. |
| Trademark: | Pumingwei | Origin: | China, Shandong, Jinan |
| Supply Ability: | 100 Sets/Year | Customization: | Available |
| Standard: | GB | Surface Treatment: | Sand Blasted |
Product Description

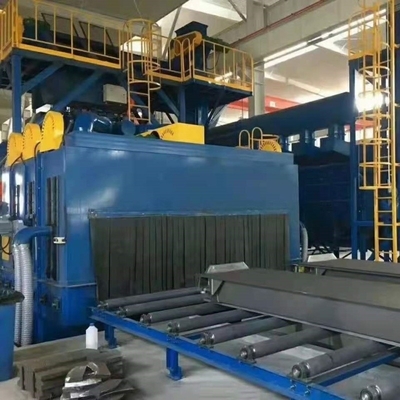

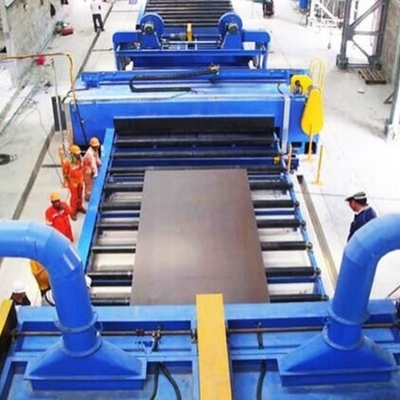

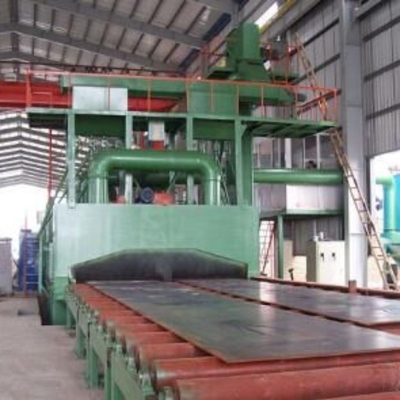

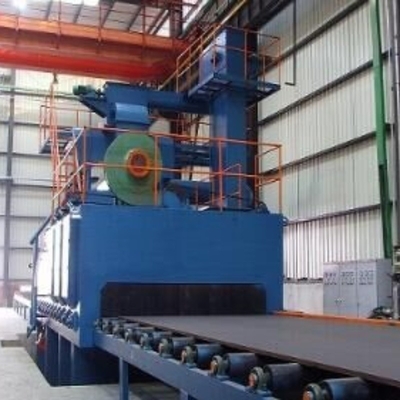

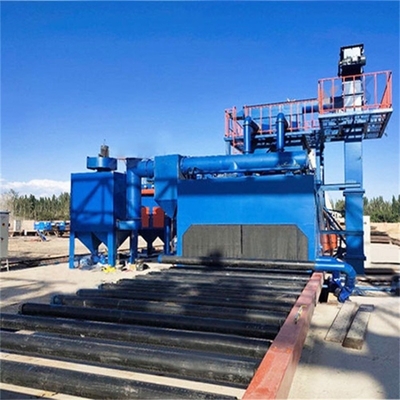

The Q6915 roller table pass-through shot blasting machine is a special shot blasting equipment specially designed for various welding parts, in order to remove the welding slag and floating rust on the surface of the workpiece, make the surface of the workpiece show the natural color of metal, improve the fatigue resistance of the workpiece, and finally achieve the purpose of improving the surface and internal quality of the workpiece. This machine has the following features: This machine consists of a feeding roller table (3m long), a discharging roller table (3m long), a shot blasting cleaning room, front and rear sealed rooms, a shot blasting device assembly (6 sets with 11kw motors), a bottom hopper, a bottom vertical and horizontal screw conveyor, a bucket elevator, a shot sand separator, a maintenance platform, a shot control system (pneumatic control), a dust removal system (settling box+filter cartridge type) and an electric control system.

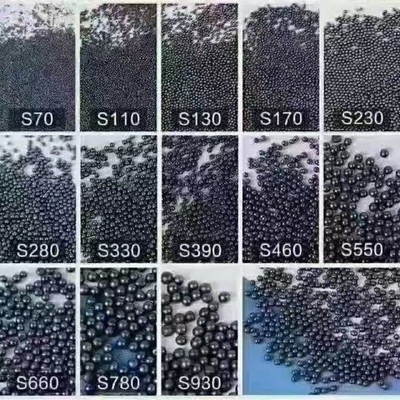

| 1. Use shot size (recommended for reference) | φ 0.8 ~ 1.2 mm (cast steel shot). |
| 2. Clean the workpiece type weldment. | |
| 3. The opening size of the equipment | 1500× 1500 mm wide. |
| 4. Roller system | |
| 5. Shot blaster Model | Q034Z |
