Pmw3850 Rod Shot Blasting Machine with Rust / Corrosion Proof and Customization
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PMW3850 | Fuel: | Electric |
|---|---|---|---|
| Type: | Catenary-Through Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Rust / Corrosion Proof |
| Condition: | New | Customized: | Customized |
| Transport Package: | Nuded Carge | Specification: | 9.5X6.1X6.9Meter |
| Trademark: | Pumingwwei | Origin: | China |
| HS Code: | 8424300000 | Supply Ability: | 40000 |
| Customization: | Available | After-sales Service: | One Years |
| Warranty: | One Years | ||
Product Description
Product Description
1.Environmentally-friendly technology instead of pickling.
2.Remote control,easy operation.
3.To disperse the wire automatically,even,high effective
and lowl abor intensity for operator.
4.Ultra-low emission:3mg/m³.
5.Widely used in (high,medium,low) carbon steel,alloy
steel,stainless steel and others.
6.Good work environment and negative pressure
within equipment.
7.Can be customized according to customer products.
8.effective length is 3850mm(its updated version is PMW5500)

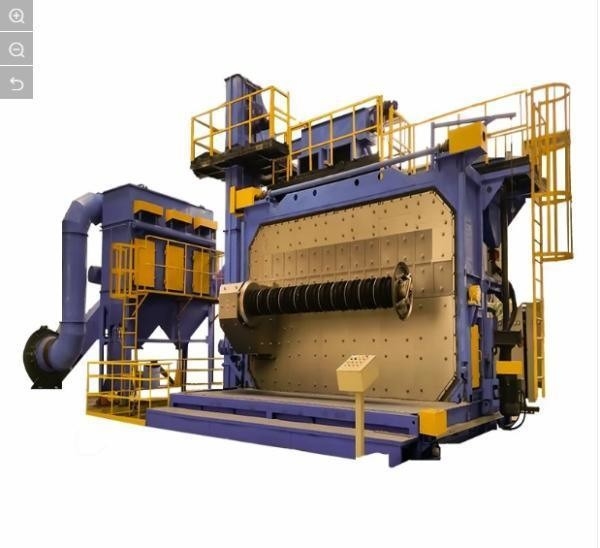

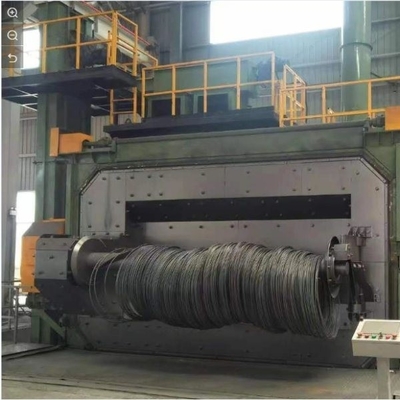

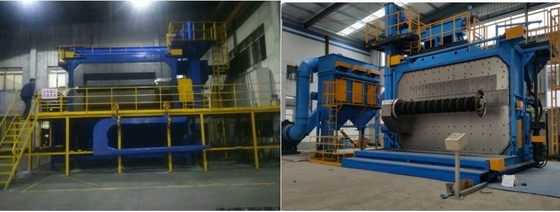

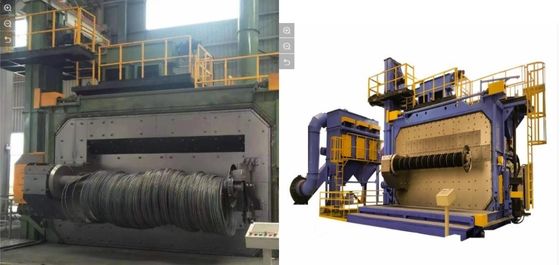

working principle for PMW3800 wire rod coil shot blasting machine
The equipment adopts the unique turnover door o carry the form of the wire rod, which is the patent product of our company with adopting double-position form to bring two workpieces alternant working .

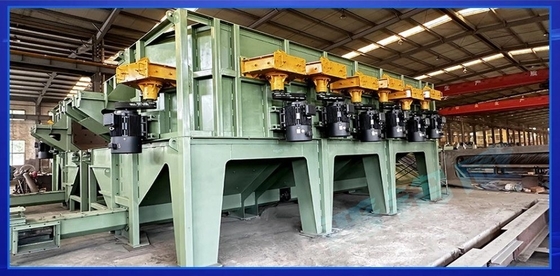

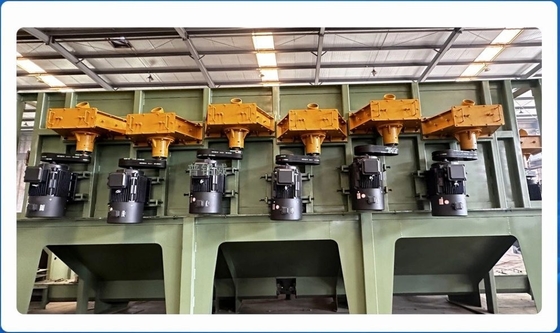

When the simple supported shaft of the wire rod enters the blasting room,which open the steel shot controller to covey steel shot to rotating impeller head,throw out the steel shot with high speed bade to hit wire rod with certain angles,which make its oxide, the Lin layer and its debris fall off. At the same time ,perform compound action "ups and down, right and left positive and negative rotation" by programmed program to beat the inside and outside surface of wire rod with steel shot effectively. The reasonable distribution of the 8 sets impeller head makes the whole wire rod without corners.
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 40,000-100,000 each year |
| Wire diameter | 8-42mm |
| Equipment size | 9.5*6.1*6.9m(overground height) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about20-40RMB/T |
| Production efficiency | 3-8coils/per hour |
QPY3850 type wire rod shot blasting machine is a special equipment which clean wire surface ,which convert the kinetic energy of the steel shot in high speed flying into the impact force of workpiece surface to strip the oxide and impurities on base metal by using the plastic deformation of the base metal and its oxide, thereby cleaning the wire rod surface thoroughly.The rust removal level of surface after wire rod postprocessing reaches Sa2.0-2.5.
As the cleaning technology of this equipment,there is no chemical reaction , its byproduct is recyclable metal scrap, so this technology is green environmental protection and no pollution.It has the characteristics of economy, environmental protection and high efficiency compared with the traditional pickling method.Therefore, this equipment is widely used in the spring, bolt, welding rod, welding wire, steel wire rope,steel strand,etc. Which get more customers favor on smoggy day
