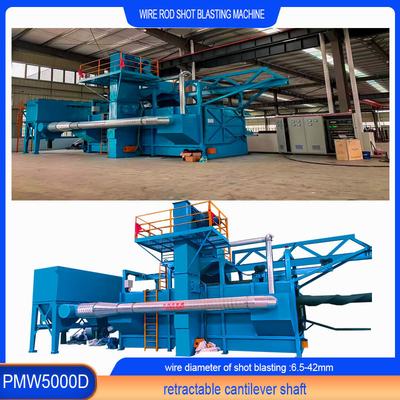

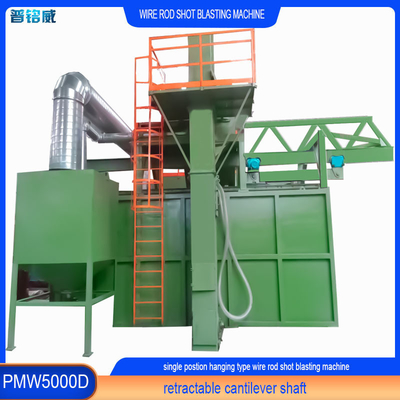

Single Position Hanging Wire Rod Coil Shot Blasting Machine with Customization Option
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PMW5000D | Cleanliness: | High Cleanliness |
|---|---|---|---|
| Automation: | Automatic | Feature: | Rust / Corrosion Proof |
| Condition: | New | Customized: | Customized |
| Impeller Head Power: | 30kw/Set | Derusting Cost: | 20-40RMB/T |
| Production Efficiency: | 2-4coils Per Hour | Wire Loss: | 0.2-0.3% |
| Transport Package: | Nuded Cargo | Specification: | 9*4*5.8m |
| Trademark: | Pumingwei | Origin: | China |
| Supply Ability: | 50sets/Each Year | Customization: | Available |
| Warranty: | One Year | Application: | Wire Surface Derusting |
Product Description
1.Environmentally-friendly technology instead of pickling.
2.Remote control,easy operation.
3.To disperse the wire automatically,even,high effective
and lowl abor intensity for operator.
4.Ultra-low emission:3mg/m³.
5.Widely used in (high,medium,low) carbon steel,alloy
steel,stainless steel and others.
6.Good work environment and negative pressure
within equipment.
7.Can be customized according to customer products.
8.retractable long shaft for Pumingwe exclusive patent in the world

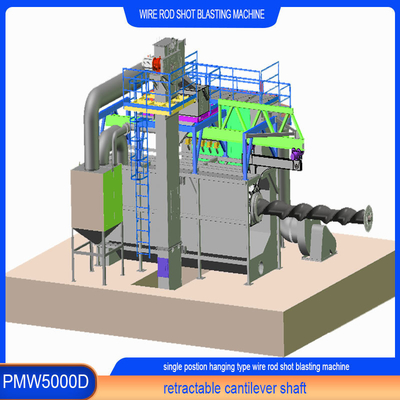

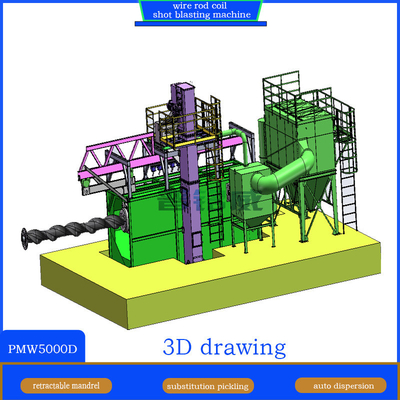

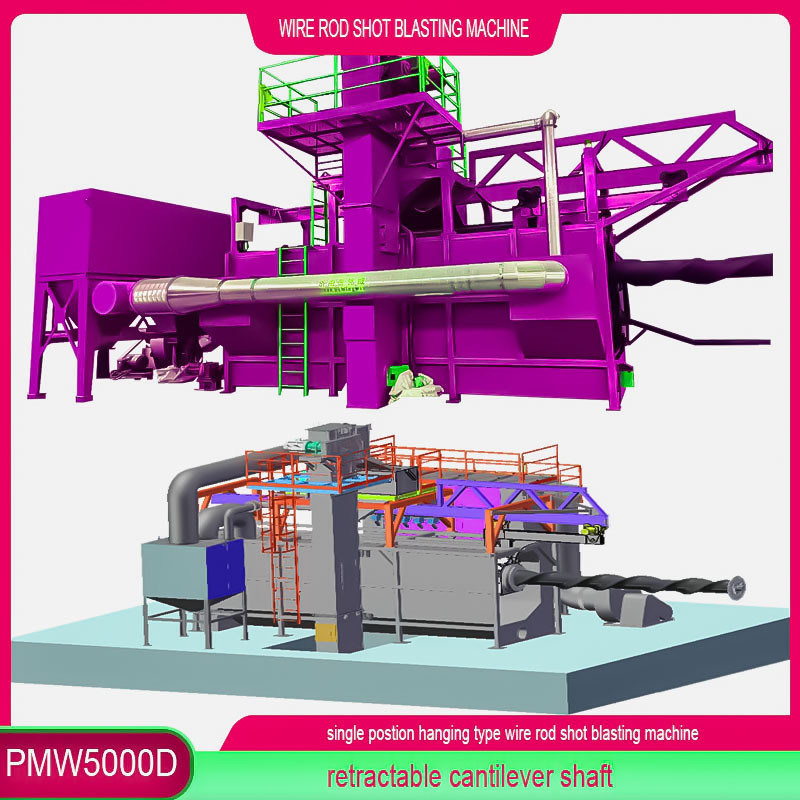

working principle for PMW5000D wire rod coil shot blasting machine The equipment adopts the unique retactable long shaft carry the form of the wire rod, which is the patent product of our company with adopting single-position form to blast,which is hanging type shot blasting equipment automatically.
When the simple supported shaft of the wire rod enters the blasting room,which open the steel shot controller to covey steel shot to rotating impeller head,throw out the steel shot with high speed bade to hit wire rod with certain angles,which make its oxide, the Lin layer and its debris fall off. At the same time ,perform compound action "ups and down, right and left positive and negative rotation" by programmed program to beat the inside and outside surface of wire rod with steel shot effectively. The reasonable distribution of the 6sets impeller head makes the whole wire rod without corners and save time,no risk with man,which is exlusive patent in the world.
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 10,000-40,000 each year |
| Wire diameter | 6.5-42mm |
| Equipment size | 9*4*5.8m |
| Wire loss | 0.2-0.3% |
| Derusting cost | about20-40RMB/T |
| Production efficiency | 2-4coils/per hour |
QPY5000D type single position hanging wire rod shot blasting machine is a special equipment which clean wire surface,which convert the kinetic energy of the steel shot in high speed flying into the impact force of workpiece surface to strip the oxide and impurities on base metal by using the plastic deformation of the base metal and its oxide, thereby cleaning the wire rod surface thoroughly.The rust removal level of surface after wire rod postprocessing reaches Sa2.0-2.5.(it's suitable for low production capacity enterprises.
As the cleaning technology of this equipment,there is no chemical reaction , its byproduct is recyclable metal scrap, so this technology is green environmental protection and no pollution.It has the characteristics of economy, environmental protection and high efficiency compared with the traditional pickling method.Therefore, this equipment is widely used in the spring, bolt, welding rod, welding wire, steel wire rope,steel strand,etc. Which get more customers favor on smoggy day
