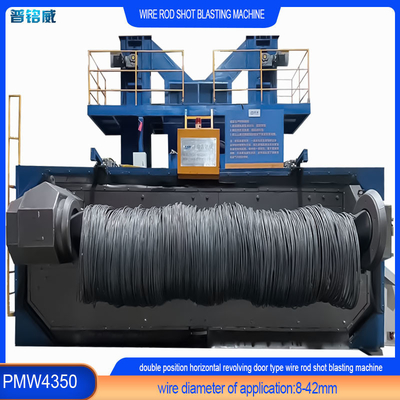

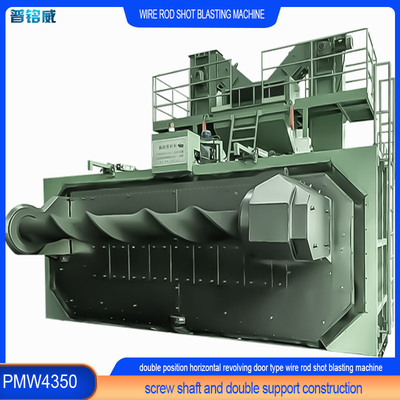

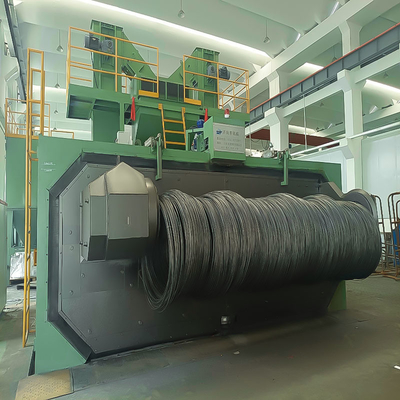

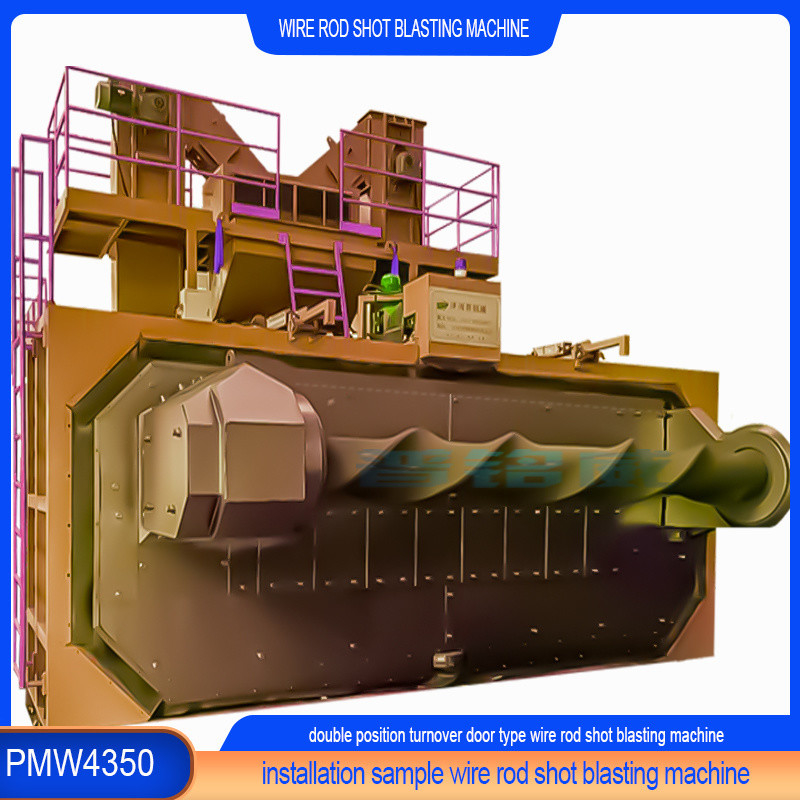

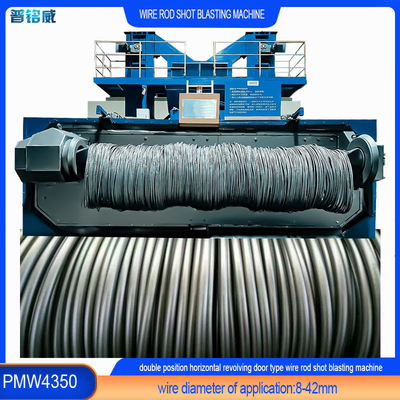

PMW4350 Horizontal Revolving Door Wire Rod Shot Blasting Machine for Steel Strand Wire
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PMW4350 | Cleanliness: | High Cleanliness |
|---|---|---|---|
| Automation: | Automatic | Feature: | Rust / Corrosion Proof |
| Condition: | New | Customized: | Customized |
| Impeller Head Power: | 30kw/Set | Derusting Cost: | 20-40RMB/T |
| Production Efficiency: | 3-6coils Per Hour | Wire Loss: | 0.2-0.3% |
| Transport Package: | Nuded Cargo | Specification: | 6.5*5.5*6m(height On The Ground) |
| Trademark: | Pumingwei | Origin: | China |
| Supply Ability: | 50sets/Each Year | Customization: | Available |
| Warranty: | One Year | Application: | Wire Surface Derusting |
Product Description
1.Environmentally-friendly technology instead of pickling.
2.Remote control,easy operation.
3.To disperse the wire automatically,even,high effective
and lowl abor intensity for operator.
4.Ultra-low emission:3mg/m³.
5.Widely used in (high,medium,low) carbon steel,alloy
steel,stainless steel and others.
6.Good work environment and negative pressure
within equipment.
7.Can be customized according to customer products.
8.horizontal revolving door type

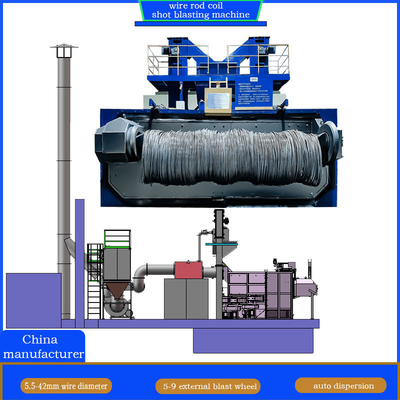

working principle for PMW4350 wire rod coil shot blasting machine The equipment is equipped with 6 sets impeller head according to the characteristics of wire rod,which is installed on the rear/side of the shot blasting chamber to clear the wire with 60-90secs cast speed,.By using screw horizontal conveying shot system, high strength belt hoist, steel shot residue separation system, two-stage purification dedusting system (inertia + filter ) and (automatic + manual )HMI electric control system,it makes the workpiece meets efficient shot blasting requirements.
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 20,000-80,000 each year |
| Wire diameter | 8-42mm |
| Equipment size | 6.6*5.5*6m(height on the ground) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about20-40RMB/T |
| Production efficiency | 2-4coils/per hour |
QPY4350 type double position horizontal rotation wire rod shot blasting machine is a special equipment which clean wire surface,which convert the kinetic energy of the steel shot in high speed flying into the impact force of workpiece surface to strip the oxide and impurities on base metal by using the plastic deformation of the base metal and its oxide, thereby cleaning the wire rod surface thoroughly.The rust removal level of surface after wire rod postprocessing reaches Sa2.0-2.5.
As the cleaning technology of this equipment,there is no chemical reaction , its byproduct is recyclable metal scrap, so this technology is green environmental protection and no pollution.It has the characteristics of economy, environmental protection and high efficiency compared with the traditional pickling method.Therefore, this equipment is widely used in the spring, bolt, welding rod, welding wire, steel wire rope,steel strand,etc. Which get more customers favor on smoggy day
