Customizable Tracked Shot Blasting Machine with High Cleanliness After Sales Worry Free
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PmwQ3210 | Fuel: | Electric |
|---|---|---|---|
| Type: | Crawler Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Non-Toxic |
| Condition: | New | Customized: | Customized |
| Colour: | Customizable | Performance: | High-Performance |
| Throwing Weight: | 600kg | Energy Saving Degree: | Very Energy-Efficient |
| Transport Package: | Packaging And Transportation To Domestic Ports | Specification: | 3770*1810*5700mm |
| Trademark: | Pumingwei | Origin: | Jinan, China |
| Supply Ability: | 100 Per Year | Customization: | Available |
| After-sales Service: | After Sales Worry Free | Warranty: | A Year |
Product Description

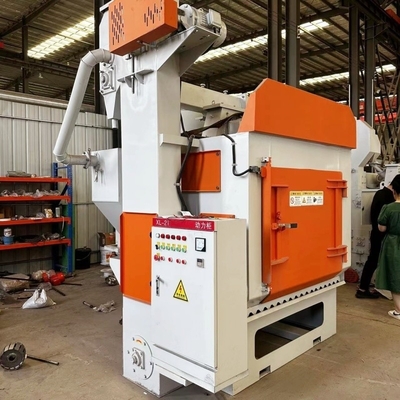

Q3210series crawler shot blasting machine/tumble belt shot blasting machine/rotary drum shot blasting machine
Advanced design,reasonable structure,low energy consumption and high efficiency with crawler shot blasting machine.This equipment is suitable for surface cleaning,derusting and product intensifying for all kinds of medium and small-sized castings ,forging and machine parts,which is suitable for different process scale,and can clean single or medium and small-sized workpieces.
| Parameter Type | Q326 | Q327 | Q328 | Q329 | Q3210 | Q3211 | Q3213 |
| The max weight of one piece/kg | 10 | 34 | 34 | 60 | 70 | 80 | 250 |
| Production rate(T/h) | 0.6-1.2 | 2.5-5 | 2.5-5 | 2.5-5 | 4.5-9 | 8-16 | 6-8 |
| The max loading capacity/kg | 200 | 480 | 480 | 480 | 800 | 1400 | 1500 |
| Diameter of roller/mm | 600 | 737 | 800 | 900 | 1000 | 1092 | 1250 |
| Diameter of distance/mm | 900 | 940 | 940 | 1050 | 1200 | 1245 | 1200 |
| Dedusting air volume(cubic meter /h) | 2200 | 1800 | 1800 | 3000 | 5000 | 5300 | 5200 |
| Shot processing capacity of circulation system/(t/h) | 9 | 15 | 15 | 15 | 16 | 18 | 16.7 |
| Impeller head quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Single abrasive flow rate(kg/min) | 200 | 230 | 230 | 220 | 270 | 480 | 300 |
| Single power/kw | 7.5 | 11 | 11 | 11 | 15 | 30 | 18.5 |
| Total power/kw | 12.6 | 16.6 | 16.6 | 16.6 | 27.27 | 36.1 | 32 |
| Overall dimension/mm | 3681*1650*5800 | 3770*1810*5700 | 3798*1850*4108 | 3770*1810*5700 | 5510*4100*4705 | 4597*3262*5709 | 5500*3500*5808 |
The company will use foam or film wrapping to pack and send to Chinese ports
Our company will provide all technical services, including drawings, and provide video guidance for installation or arrange personnel to install on site according to customer requirements
