Small Casts No Problem Get the Q327 Auto Rust Cleaning Crawler Shot Blasting Machine
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | Q327 | Customized: | Customized |
|---|---|---|---|
| Power: | 12W | Condition: | New |
| Transport Package: | Sea Transportation | Specification: | 3770*1810*5700mm |
| Trademark: | Pumingwei | Origin: | Jinan, China |
| Supply Ability: | 120 | Customization: | Available |
| After-sales Service: | One Year | Warranty: | Year |
Product Description

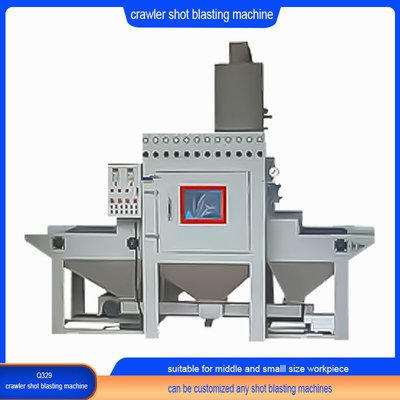

Q327series crawler shot blasting machine/tumble belt shot blasting machine/rotary drum shot blasting machine
Advanced design,reasonable structure,low energy consumption and high efficiency with crawler shot blasting machine.This equipment is suitable for surface cleaning,derusting and product intensifying for all kinds of medium and small-sized castings ,forging and machine parts,which is suitable for different process scale,and can clean single or medium and small-sized workpieces.
| Parameter Type | Q326 | Q327 | Q328 | Q329 | Q3210 | Q3211 | Q3213 |
| The max weight of one piece/kg | 10 | 34 | 34 | 60 | 70 | 80 | 250 |
| Production rate(T/h) | 0.6-1.2 | 2.5-5 | 2.5-5 | 2.5-5 | 4.5-9 | 8-16 | 6-8 |
| The max loading capacity/kg | 200 | 480 | 480 | 480 | 800 | 1400 | 1500 |
| Diameter of roller/mm | 600 | 737 | 800 | 900 | 1000 | 1092 | 1250 |
| Diameter of distance/mm | 900 | 940 | 940 | 1050 | 1200 | 1245 | 1200 |
| Dedusting air volume(cubic meter /h) | 2200 | 1800 | 1800 | 3000 | 5000 | 5300 | 5200 |
| Shot processing capacity of circulation system/(t/h) | 9 | 15 | 15 | 15 | 16 | 18 | 16.7 |
| Impeller head quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Single abrasive flow rate(kg/min) | 200 | 230 | 230 | 220 | 270 | 480 | 300 |
| Single power/kw | 7.5 | 11 | 11 | 11 | 15 | 30 | 18.5 |
| Total power/kw | 12.6 | 16.6 | 16.6 | 16.6 | 27.27 | 36.1 | 32 |
| Overall dimension/mm | 3681*1650*5800 | 3770*1810*5700 | 3798*1850*4108 | 3770*1810*5700 | 5510*4100*4705 | 4597*3262*5709 | 5500*3500*5808 |
Pumingwei crawler type shot blasting machine is professional,unque and irreplaceable
1.Supplier ensure that the name, model, specification and quantity are consistent with technical agreement ,and we
make sure that all machine is new with qualifying product through perfect technology and installation,the quality is
stable and reliable.There are no defects in design, material and technology,which is suitable for proposal of demander.
And meets the standard of national industry.
2.Arrange for engineer or skilled labour to installation and debugging of equipment in overseas
( except force majeure, inappropriate operation and the quick-wear parts ).
3.In order to ensure a good quality, every machine in the factory will be strict calibration and debugging before they
leave the factory.
4.We will direct the installation and operation of the equipment, and train operators for customer
