1 Ton Special Rubber Crawler Shot Blasting Machine for Long and Wide Screw Parts
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | 3210 | Material: | Stainless Steel |
|---|---|---|---|
| Weight: | 1 Tons | Efficiency: | 1 Tons Per Hour |
| Operation Convenience: | Remote Control Operation | Maximum Load: | 1 Ton |
| Transport Package: | Sea Transportation | Specification: | 3meters Long And 5 Meters Wide. |
| Trademark: | Pumingwei | Origin: | China, Shandong, Jinan |
| Supply Ability: | 100 Sets/Year | Customization: | Available |
| Standard: | GB | Surface Treatment: | Sand Blasted |
Product Description
This machine is suitable for hanging shot blasting cleaning of all kinds of iron castings, which can make the projectile coverage rate on the convex and concave surfaces of castings ≥ 95; It can meet the technological requirements of rough polishing and rough and fine shot blasting cleaning of iron castings. Using shot blasting machine to clean castings has the following advantages: Improve the mechanical properties of castings and prolong their service life. Remove sand, rust, scale and other dirt on the casting surface. The surface of the casting is homogenized to obtain the required surface roughness. The surface defects of castings can be found directly, which is convenient for casting repair. Improve the adhesion of spray painting on casting surface. Greatly improve the cleaning efficiency. Reduce the labor intensity of cleaning work. Reduce environmental pollution.
| Project | model | Q3210 | |
| Cleaning room size | mm | 1000*1000*1000Shot blaster number table | |
| Workpiece size(rotating diamete×height) | mm | according to the customer's workpiece size | |
| Shot blaster number | table | 1 | |
| Shot blasting amount | Kg/min | 1*240=240 | |
| Motor power | Kw | 1*15=15 | |
| Load | Kg | 500 | |

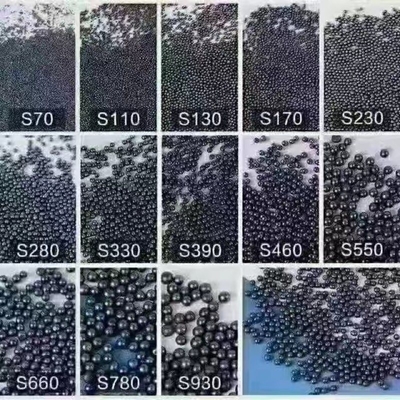

| Projectile | mm | 0.5-1.5 | |
| Productivity | (casting) | minutes | 6-15 |
| (Steel members) | minutes | 6-15 | |
| Lifting capacity | t/h | 32 | |
| Separation amount | t/h | 32 | |
| Dust removal air volume | meters per hour | 4000 | |
| Overall dimensions of main engine | mm | 2000*2000*4800 | |
| Total power | Kw | ~25 | |
