Product Description

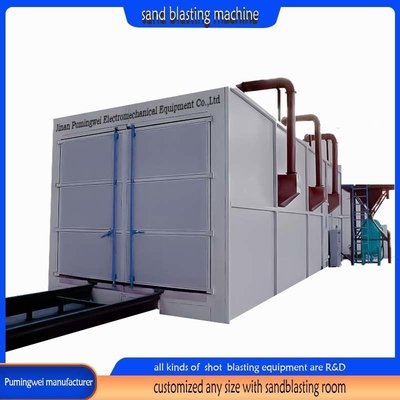

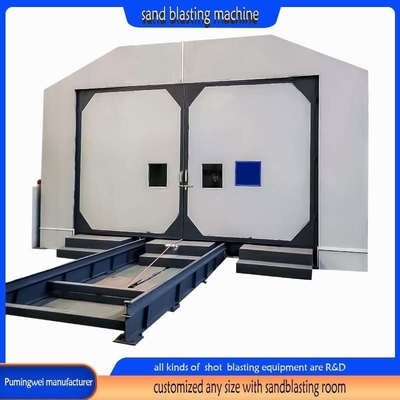

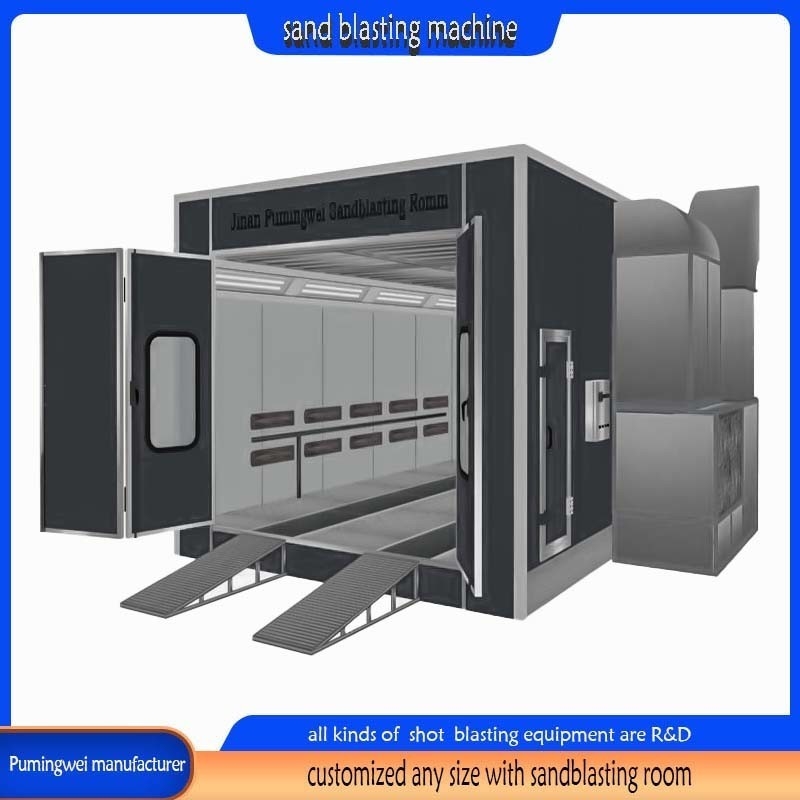

Sandblasting room also called sand blasting machine , suitable for large work piece surface cleaning, rust removal, increase the coating adhesion effects with the work piece,according to the abrasive way of recycling ,sandblasting room is divided into: mechanical recycling type sandblasting room and artificial recovery type sandblasting room.The artificial recycling sandblasting room greatly reduced the cost due to the economic and practical, simple, convenient and simple materials, because of that,it is also accepted by many customers, especially small and medium-sized enterprises.
Application range of sand blasting machine are as follows :steel structures, vessels, trailers, castings, valves and other parts. It can remove the complex work piece surface dirt, the oxide skin, welding slag,paint and so on and causes the work piece surface to be bright and clean, meanwhile, reduce the stress inside workpiece, workpiece surface will be strengthened, and enhances the intrinsic quality.
Easy technology can be used for small enterprise with saving money,big returens are critical,not only we can produce this small equipment,but also design and manufacture big wire rod shot blasting machine and through/hook/crawler type shot blasting machine,single through wire shot blasting machine and inteliigent shot blasting production line (wire rod shot blating machine in particular ).
Product Parameters
MODEL:PMW-s1
| Max. Workpiece size (L*W*H) | 7*8*3m or custom |
| Max. Workpiece weight | Max. 5 T |
| dedusting level | Can achieve Sa2-2 .5 (GB8923-88) |
| Processing speed | 30-60 m3/min (Operator start different blasting guns quantity) |
| Surface roughness | 40~75 μ (Depend on abrasive size) |
| Suggest steel shot | Grinding steel shot, Φ0.5~1.5 |
| dimension inside sandblasting room (L*W*H) | 15*8*6 m(can be customized any sizes according to customers workpiece) |
| Electric power supply | 380V, 3P, 50HZ or customized |
| Pit requirement | Waterproof |
Features

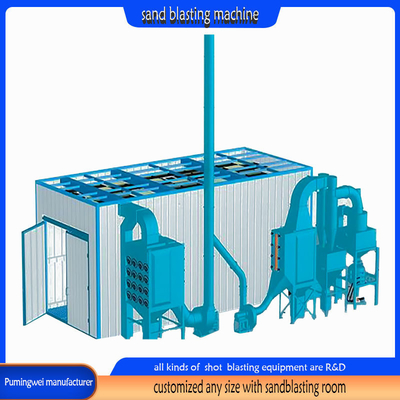

Sand blasting machine consists of Sand blasting chamber, Sand blasting device, Screw conveyor, Elevator, Separator, Abrasive recycling system, Trolley system, Lighting system, Bottom funnel, Steel grating, Dust removal system, Electric control system, etc.
The main construction features are follows:
Sand blasting system
We fully take into account the operation convenience of the workers, we have also added the sand blasting chamber operating space, lighting system and platform so that workers can operate with convenient, effective and comprehensive.
Screw conveyor
The screws convey is consist of reducer, screw shaft, conveying box, rolling bearing with base, etc. It is a kinds of standard abrasive horizontal conveying device, which is an important part of the abrasive recycling system of the blasting machine also.
Bucket Elevator
The bucket elevator is consist of speed reducer, upper and lower rolling barrel, transmission rubber belt, bucket elevator, shell and tightening device, etc.
Separator
This machine adopts advanced Model BE full shutter type separator. The separator is mainly composed of airwash area, barrel sift, conveying screw, abrasive hopper, manual abrasive controlling valve.
Abrasive recycling system
This machine adopts the patented shot valve produced of our company; It can accumulate a certain time in blasting, and feed the shot ball into the blasting device through the manual controlling.
Dust removal system
This machine adopts Cartridge or bag type dust collector, is exhausted air produced during working. The dedusting efficiency is up to 99.6%, powder density is less than 100mg/m3, much stricter than the national standard.
Electric control system
Set circulatory fault alarm device with shot, when a failure happens on the parts of system, the above components automatically stop running, and prevent the shot ball stuck and burning power device.
