Electric Tumble Crawler Shot Blasting Machine for Stamping Parts Perfect Performance
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | Q327 | Fuel: | Electric |
|---|---|---|---|
| Type: | Crawler Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Cleaning Workpiece Surface |
| Condition: | New | Customized: | Customized |
| Color: | Yellow And Blue And So On | Production Rate: | 2.0-2.8t/H |
| The Max Single Weight: | 25kg | Total Power: | 26 |
| Transport Package: | Foam, Pallet Or Customized | Specification: | Customized |
| Trademark: | Pumingwei | Origin: | China |
| Supply Ability: | 300sets/Each Year | Customization: | Available |
| After-sales Service: | One Year | Warranty: | One Year |
Product Description

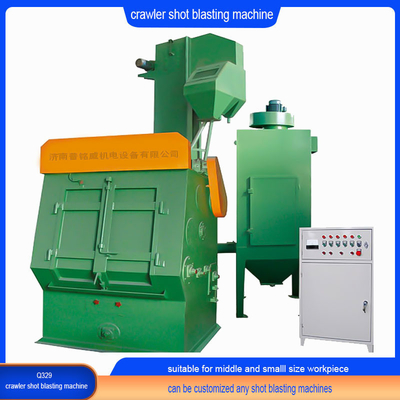

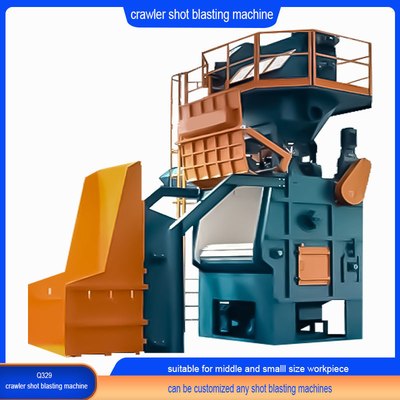

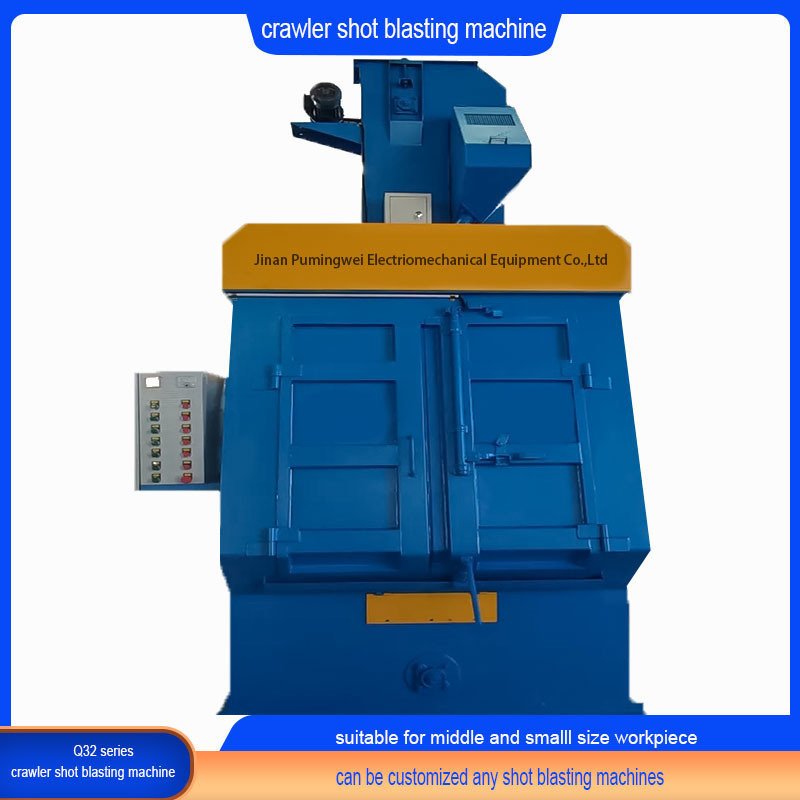

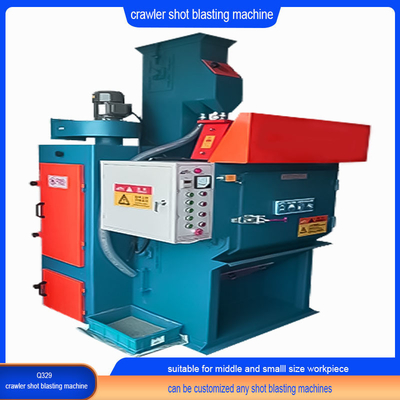

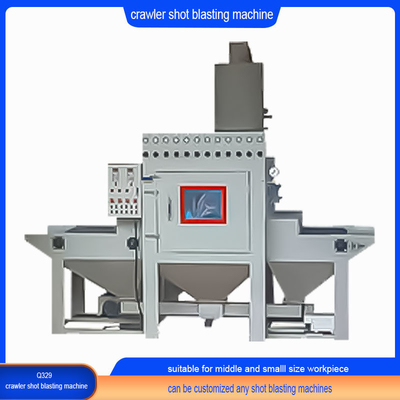

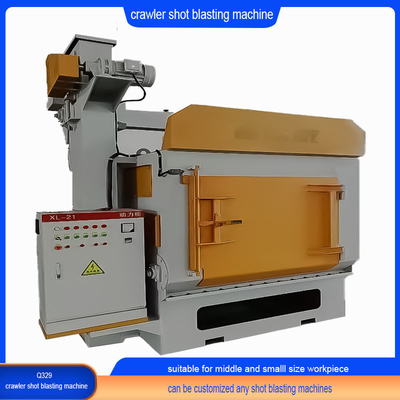

Q329 type crawler shot blasting machine
The crawler type shot blasting machine is suitable for surface rust removal or shot blasting strengthening of multi-variety, medium and small batch production workpieces. Which must be not fear of collision castings and heat treatment parts, application scope: die casting, precision castings, precision forgings and other cleaning.and oxide layer for removal of heat treatment parts, castings, forgings, spring and fastener. The machine can not clean the workpiece with high temperature or flash burr, otherwise the crawler belt will be damaged. Automatic loading and unloading device can be designed to reduce labor intensity and improve production efficiency.
| Type Parameter | Q326 | Q327 | Q328 | Q329 | Q3210 | Q3211 | Q3213 |
| The max weight of one piece/kg | 10 | 34 | 34 | 60 | 70 | 80 | 250 |
| Production rate(T/h) | 0.6-1.2 | 2.5-5 | 2.5-5 | 2.5-5 | 4.5-9 | 8-16 | 6-8 |
| The max loading capacity/kg | 200 | 480 | 480 | 480 | 800 | 1400 | 1500 |
| Diameter of roller/mm | 600 | 737 | 800 | 900 | 1000 | 1092 | 1250 |
| Diameter of distance/mm | 900 | 940 | 940 | 1050 | 1200 | 1245 | 1200 |
| Dedusting air volume (m3/h) | 2200 | 1800 | 1800 | 3000 | 5000 | 5300 | 5200 |
| Shot processing capacity of circulation system/(t/h) | 9 | 15 | 15 | 15 | 16 | 18 | 16.7 |
| Impeller head quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Single abrasive flow rate(kg/min) | 200 | 230 | 230 | 220 | 270 | 480 | 300 |
| Single power/kw | 7.5 | 11 | 11 | 11 | 15 | 30 | 18.5 |
| Total power/kw | 12.6 | 16.6 | 16.6 | 16.6 | 27.27 | 36.1 | 32 |
| Overall dimension/mm | 3681*1650*5800 | 3770*1810*5700 | 3798*1850*4108 | 3770*1810*5700 | 5510*4100*4705 | 4597*3262*5709 | 5500*3500*5808 |
1.What is your workpiece and the material and the shape ? 2.Send me the Max.Length/Width/Height of the workpiece and the MAX./MIN.Weight of your workpiece.
3.how many tons/pieces do you need blast the workpiece per day or per month?
4.what is the power supply do you need?
5.what is the wire diameter and production name?(direct at wire rod shot blasting machine)
6.what is the workshop height?in order to install the machine
1.Production time: 20-40 days or half years according to different type.
2.the time of installation and debugging: 10-15 days,and intelligent shot blast production line is about 60days
3.Installation and debugging: We will dispatch 1-2 technicians to help with machine installation and debugging, customer pays for their tickets, hotel and diet.
4. Warranty time: 12 months from date of debugging completion, but not exceed18 months from date of delivery.
5. Payment term: 30% as prepayment, balance 70% before delivery or L/C at sight.
6. English documents: including total installation drawing, pit design drawing, instruction book, circuit diagram drawing and notice, etc.
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. can be provided our customers with exclusive and unique solution by our well-trained and professional engineers and staff.
5. Special discount and protection of sales will be provided to our distributor.
6. Professional factory: We are largest manufacturer, specializing in producing all kinds of Shot Blasting Machine & Metal Abrasive and so on in China, competitive with good quality products
7. As an honest and more experience seller, we always use superior raw material, advanced machines, skilled technicians to ensure that our products will be designed in high quality and stable performance.
8.we have more than 30 patents with shot blasting machine(36 patents with wire rod shot blasting machine)
9.we have R&D capability with all kinds of shot blasting equipment.
If the above model is not suitable for your workpiece, please tell us your requirement and then we can send you the most satisfying drawing.
1.Supplier ensure that the name, model, specification and quantity are consistent with technical agreement ,and we
make sure that all machine is new with qualifying product through perfect technology and installation,the quality is
stable and reliable.There are no defects in design, material and technology,which is available for customer proposal.
And meets the standard of national industry.
2.Arrange for engineer or skilled labour to installation and comissioning of equipment in overseas ( except force majeure, inappropriate operation and the quick-wear parts ).
3.In order to ensure a good quality, every machine in the factory will be strict calibration and commissioning before they
leave the factory.
