Metallurgy Sandblasting S330 Cleanliness Steel Shot with 1.0mm Diameter and Standard
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 3000tons/Month |
|
Detail Information |
|||
| Model NO.: | S330 | Shotblast Application: | Guns And Tanks |
|---|---|---|---|
| Sandblasting Method: | Dry Spray | Sandblasting Applications: | Metallurgy |
| Diameter: | 1.0mm | Transport Package: | Bags |
| Specification: | 25kg*40bags | Trademark: | Pumingwwei |
| Origin: | China | HS Code: | 72051000 |
| Supply Ability: | 60000tons | Customization: | Available |
| Shotblast Type: | Shot Blasting | Shotblast Material: | Steel Shot |
Product Description

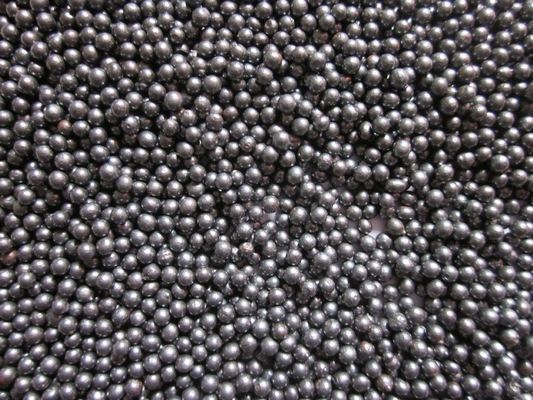

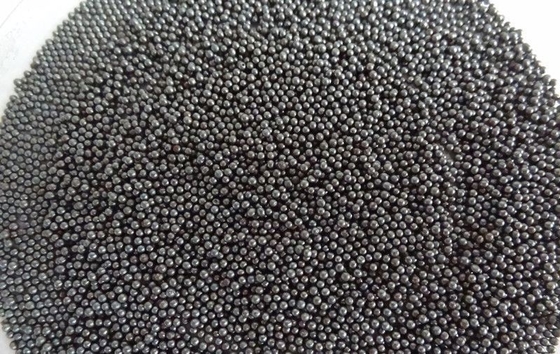

S330 Cleanliness Steel Shot with SAE Standard Specification
| Application: | Abrasive Refractory Industry |
|---|---|
| Function: | Descaling |
| Particle Size: | Customer Requirement |
| Hardness: | Superabrasive |
| Density: | 7g/cm3 |
| Microstructure: | Homogeneous Tempered Martensite or Troostite |
Model NO.
S 330
External Form
Round Shape
Payment
T/T
Samples
500gram
Transport Package
25kg*40bags
Specification

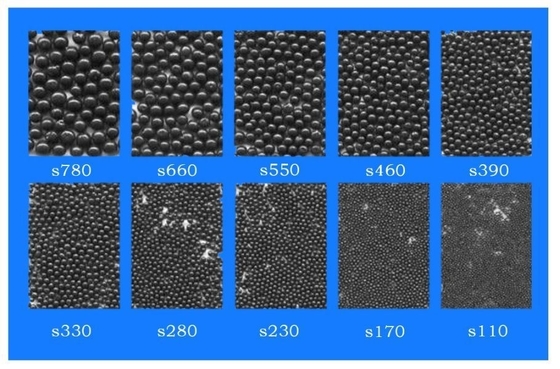

S70/110/170/230/280/330/390/460/550/660/780
Trademark
Pumingwei
Origin
China
HS Code
72051000
Production Capacity
60000t

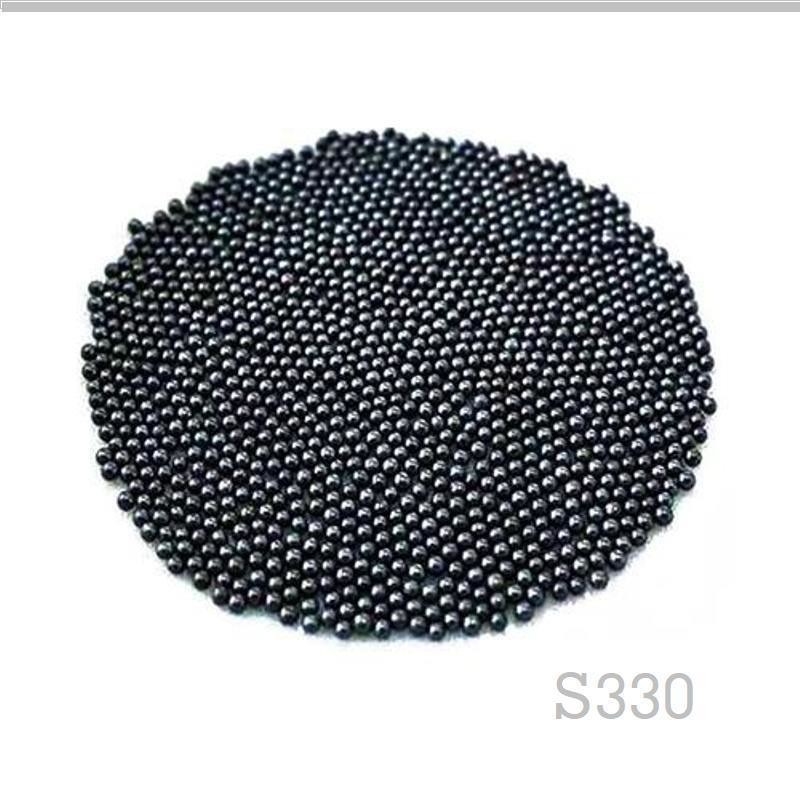

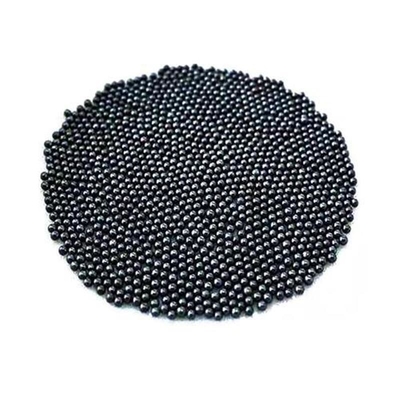

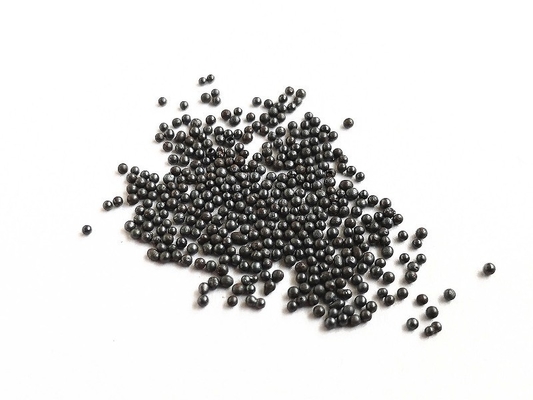

First. Introduction of S330 Steel Shot
S330 steel shot refers to a steel shot with a product diameter of 1.0mm. s330 can achieve good coverage in a short time. For various castings with high requirements on the surface of the workpiece, s330 steel shot has uniform hardness and good cleaning effect. ,Durable wear. The brightness of the cleaned workpiece is large, and the processing effect is very obvious.
Second, the advantages of S330 steel shot
1. Tight organization, uniform particle size, moderate hardness, strong toughness and impact resistance.
2. Good abrasion resistance, long life, and continuous and repeatable use.
3. Uniform product, good resilience, strong adhesion and fast cleaning speed.
4. The brightness of the cleaned workpiece is large, and the processing effect is very obvious.
Three, S330 steel shot composition table
Low Hardness Extreme Durability Round Shape Safe on Delicate and Sensitive Parts Works in Standard Blast Equipment Little to No Dusting Won't Damage Part Details No Work Hardening of the Part Resists Breaking Down No Metal Removal from Part Surface Applications Deburring Delicate Machined Parts and Stampings Cleaning Investment Castings Remove Release Agent Build-up on Molds Corrosion Removal Remove Heat Treat Scale Deflashing Die Cast Aluminum Parts
Hight Carbon Steel Shot
Is used in wheel blasting equipment. It also gives a hammered or peened effect for use on ferrous castings and fabrication Our High-carbon steel shot is a very powerful abrasive for the surface treatment of metallic products. In contrast to low carbon steel shot round, this product has a higher beam intensity and thus enables faster working. Steel shot also has a use in the removal of scale, rust and surface contaminant and used foundries for de-burring or de-flashing of castings and cleaning moulds.
| mesh | mm | Specifications of steel shot | ||||||||||
| SS-2.5 | SS-2.0 | SS-1.7 | SS-1.4 | SS-1.2 | SS-1.0 | SS-0.8 | SS-0.6 | SS-0.5 | SS-0.3 | SS-0.2 | ||
| 7 | 2.80 | All pass | ||||||||||
| 8 | 2.36 | All pass | ||||||||||
| 10 | 2.00 | 85%min | All pass | All pass | ||||||||
| 12 | 1.70 | 97%min | 85%min | 5%max | All pass | |||||||
| 14 | 1.40 | 97%min | 85%min | 5%max | All pass | |||||||
| 16 | 1.18 | 97%min | 85%min | 5%max | All pass | |||||||
| 18 | 1.00 | 96%min | 85%min | 5%max | All pass | |||||||
| 20 | 0.850 | 96%min | 85%min | 10%max | All pass | |||||||
| 25 | 0.710 | 96%min | 85%min | 10%max | ||||||||
| 30 | 0.600 | 96%min | 85%min | All pass | ||||||||
| 35 | 0.500 | 97%min | 10%max | |||||||||
| 40 | 0.425 | 85%min | All pass | |||||||||
| 45 | 0.355 | 97%min | 10%max | |||||||||
| 50 | 0.300 | 80%min | ||||||||||
| 80 | 0.180 | 90%min | 80%min | |||||||||
| 120 | 0.125 | 90%min | ||||||||||
| 200 | 0.075 | |||||||||||
| 325 | 0.045 | |||||||||||
| SAE J444 | S-780 | S-660 | S-550 | S-460 | S-390 | S-330 | S-280 | S-230 | S-170 | S-110 | S-70 | |
| Name | Cast steel shot | Cast steel grit | Steel cut wire shot | Conditional cut wire shot | HQ cast steel shot | |
| Chemical composition | C | 0.80-1.20% | 0.45-0.85% | 0.45-0.85% | 0.80-1.20% | |
| Mn | 0.35-1.20% | 0.30-1.30% | 0.30-1.30% | 0.35-1.20% | ||
| Si | ≥0.40 | 0.15-0.35% | 0.15-0.35% | ≥0.40 | ||
| S | ≤0.05% | ≤0.05% | ≤0.05% | ≤0.05% | ||
| P | ≤0.05% | ≤0.04% | ≤0.04% | ≤0.05% | ||
| hardness | Routine:40-50HRC | GP steel grit 42-52HRC | 1.0mm:42-53HRC | 45-60HRC | Routine:42-47HRC Special:52-56HRC Special:56-60HRC | |
| Special:52-56HRC | GP steel grit 53-60HRC | 1.5mm:41-45HRC | ||||
| Special:56-60HRC | GP steel grit 60-64HRC | |||||
| Hardness deviation | The max deviation range:±3.0HRC | |||||
| Tensile intensity | - | 1300-2200Mpa | 2200-2800Mpa | - | ||
| Durability | 2000-28000 times | 3300-4000times | 4000times | 2800-3300times | ||
| Microstructure | Tempered martensite or sorbite | Deformed pearlite | Deformed sorbite | Tempered martensite or sorbite | ||
| Density | 7.4g/cm3 | 7.6g/cm3 | 7.8g/cm3 | 7.8g/cm3 | 7.4g/cm3 | |
| Bulk density | 4.4g/cm3 | 4.2g/cm3 | 4.5g/cm3 | 4.5g/cm3 | 4.4g/cm3 | |
