1.20mm S390 Steel Shot for Sandblasting and Metallurgy Applications in Shipbuilding
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | S390 | Shotblast Application: | Shipbuilding |
|---|---|---|---|
| Sandblasting Method: | Dry Spray | Sandblasting Applications: | Metallurgy |
| Sea Port: | Shanghai | 1: | 2 |
| Transport Package: | Bags | Specification: | S460 |
| Trademark: | Pumingwwei | Origin: | China |
| HS Code: | 8482910000 | Supply Ability: | 2000t |
| Customization: | Available | Shotblast Type: | Shot Blasting |
| Shotblast Material: | Steel Shot | ||
Product Description

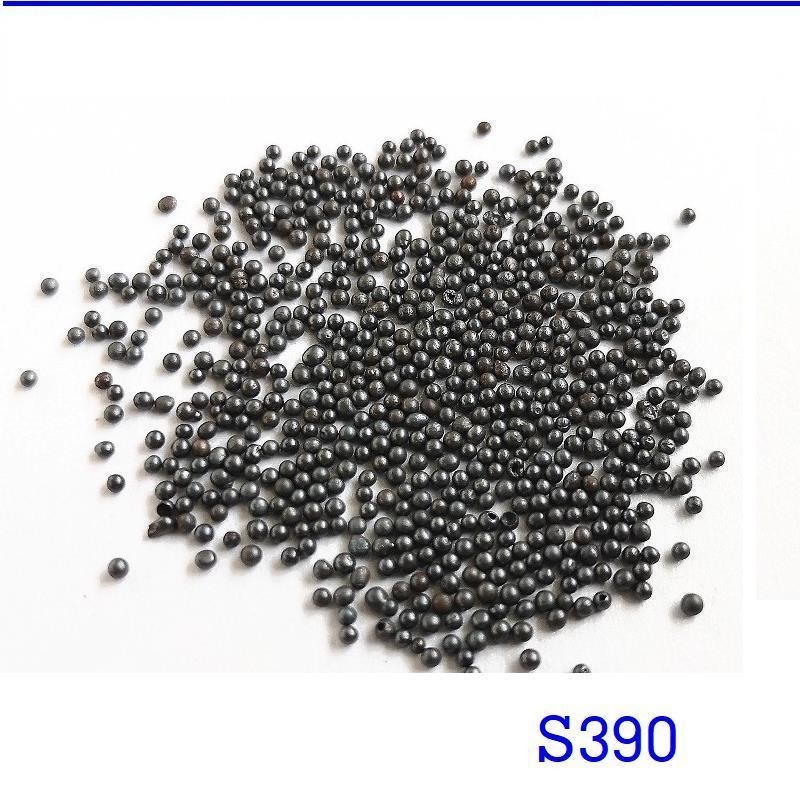

First. Introduction of S390 Steel Shot
S390 steel shot refers to a steel shot with a product diameter of 1.2mm.
s390 can achieve good coverage in a short time. For various castings with high requirements on the surface of the workpiece, s390 steel shot has uniform hardness and good cleaning effect. ,Durable wear.
Second, the advantages of S390 steel shot
1. Tight organization, uniform particle size, moderate hardness, strong toughness and impact resistance.
2. Good abrasion resistance, long life, and continuous and repeatable use.
3. Uniform product, good resilience, strong adhesion and fast cleaning speed.
4. The brightness of the cleaned workpiece is large, and the processing effect is very obvious.
Third. Applicable equipment types for S390 steel shot
Pavement shot blasting machine, bridge shot blasting machine, concrete shot blasting machine, bridge shot blasting machine, pavement blasting machine, angle steel shot blasting machine, hook-through shot blasting machine, stone shot blasting machine, section steel shot blasting machine, steel bottle Shot blasting machine, steel plate derusting machine, wire shot blasting machine, steel structure shot blasting machine, steel pipe shot blasting machine, steel plate shot blasting machine
Fourth, the scope of application scenarios of S390 steel shot
1. Cleaning: shot blasting, shot blasting, die castings, castings .
2. Rust removal: shot blasting, shot blasting, casting rust removal, forging rust removal, steel plate rust removal, forging rust removal, steel rust removal, H-shaped steel rust removal, steel structure rust removal.
3. Strengthening: shot peening, heat-treated parts shot peening, gear shot peening.
4. Shot peening: section steel shot peening, section steel sand blasting, ship board shot blasting, steel plate shot peening, steel shot peening.
5. Shot blasting: steel plate shot blasting, steel shot blasting, profile steel shot blasting.
6. Sand blasting: sand blasting treatment.
7. Cast steel shot pretreatment: pretreatment for painting, pretreatment for painting, surface pretreatment, shipboard pretreatment, section steel pretreatment, steel pretreatment, steel plate pretreatment, steel structure pretreatment.
Five, S390 steel shot composition element table
| mesh | mm | Specifications of steel shot | ||||||||||
| SS-2.5 | SS-2.0 | SS-1.7 | SS-1.4 | SS-1.2 | SS-1.0 | SS-0.8 | SS-0.6 | SS-0.5 | SS-0.3 | SS-0.2 | ||
| 7 | 2.80 | All pass | ||||||||||
| 8 | 2.36 | All pass | ||||||||||
| 10 | 2.00 | 85%min | All pass | All pass | ||||||||
| 12 | 1.70 | 97%min | 85%min | 5%max | All pass | |||||||
| 14 | 1.40 | 97%min | 85%min | 5%max | All pass | |||||||
| 16 | 1.18 | 97%min | 85%min | 5%max | All pass | |||||||
| 18 | 1.00 | 96%min | 85%min | 5%max | All pass | |||||||
| 20 | 0.850 | 96%min | 85%min | 10%max | All pass | |||||||
| 25 | 0.710 | 96%min | 85%min | 10%max | ||||||||
| 30 | 0.600 | 96%min | 85%min | All pass | ||||||||
| 35 | 0.500 | 97%min | 10%max | |||||||||
| 40 | 0.425 | 85%min | All pass | |||||||||
| 45 | 0.355 | 97%min | 10%max | |||||||||
| 50 | 0.300 | 80%min | ||||||||||
| 80 | 0.180 | 90%min | 80%min | |||||||||
| 120 | 0.125 | 90%min | ||||||||||
| 200 | 0.075 | |||||||||||
| 325 | 0.045 | |||||||||||
| SAE J444 | S-780 | S-660 | S-550 | S-460 | S-390 | S-330 | S-280 | S-230 | S-170 | S-110 | S-70 | |
| Name | Cast steel shot | Cast steel grit | Steel cut wire shot | Conditional cut wire shot | HQ cast steel shot | |
| Chemical composition | C | 0.80-1.20% | 0.45-0.85% | 0.45-0.85% | 0.80-1.20% | |
| Mn | 0.35-1.20% | 0.30-1.30% | 0.30-1.30% | 0.35-1.20% | ||
| Si | ≥0.40 | 0.15-0.35% | 0.15-0.35% | ≥0.40 | ||
| S | ≤0.05% | ≤0.05% | ≤0.05% | ≤0.05% | ||
| P | ≤0.05% | ≤0.04% | ≤0.04% | ≤0.05% | ||
| hardness | Routine:40-50HRC | GP steel grit 42-52HRC | 1.0mm:42-53HRC | 45-60HRC | Routine:42-47HRC Special:52-56HRC Special:56-60HRC | |
| Special:52-56HRC | GP steel grit 53-60HRC | 1.5mm:41-45HRC | ||||
| Special:56-60HRC | GP steel grit 60-64HRC | |||||
| Hardness deviation | The max deviation range:±3.0HRC | |||||
| Tensile intensity | - | 1300-2200Mpa | 2200-2800Mpa | - | ||
| Durability | 2000-28000 times | 3300-4000times | 4000times | 2800-3300times | ||
| Microstructure | Tempered martensite or sorbite | Deformed pearlite | Deformed sorbite | Tempered martensite or sorbite | ||
| Density | 7.4g/cm3 | 7.6g/cm3 | 7.8g/cm3 | 7.8g/cm3 | 7.4g/cm3 | |
| Bulk density | 4.4g/cm3 | 4.2g/cm3 | 4.5g/cm3 | 4.5g/cm3 | 4.4g/cm3 | |
