S170 Steel Shot 0.5mm Customizable for Superior Blasting Performance
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | S170 | Shotblast Application: | Shipbuilding |
|---|---|---|---|
| Sandblasting Method: | Dry Spray | Sandblasting Applications: | Metallurgy |
| Sea Port: | Shanghai | 1: | 2 |
| Transport Package: | Bags | Specification: | S170 |
| Trademark: | Pumingwwei | Origin: | China |
| HS Code: | 8482910000 | Supply Ability: | 2000t |
| Customization: | Available | Shotblast Type: | Shot Blasting |
| Shotblast Material: | Steel Shot | ||
Product Description

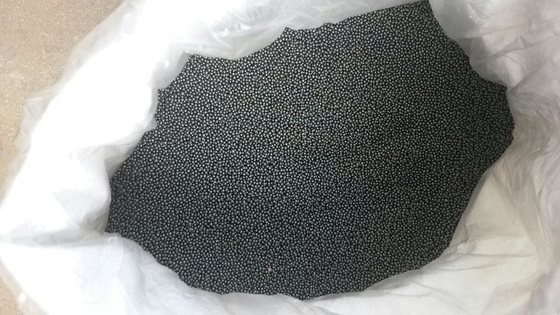

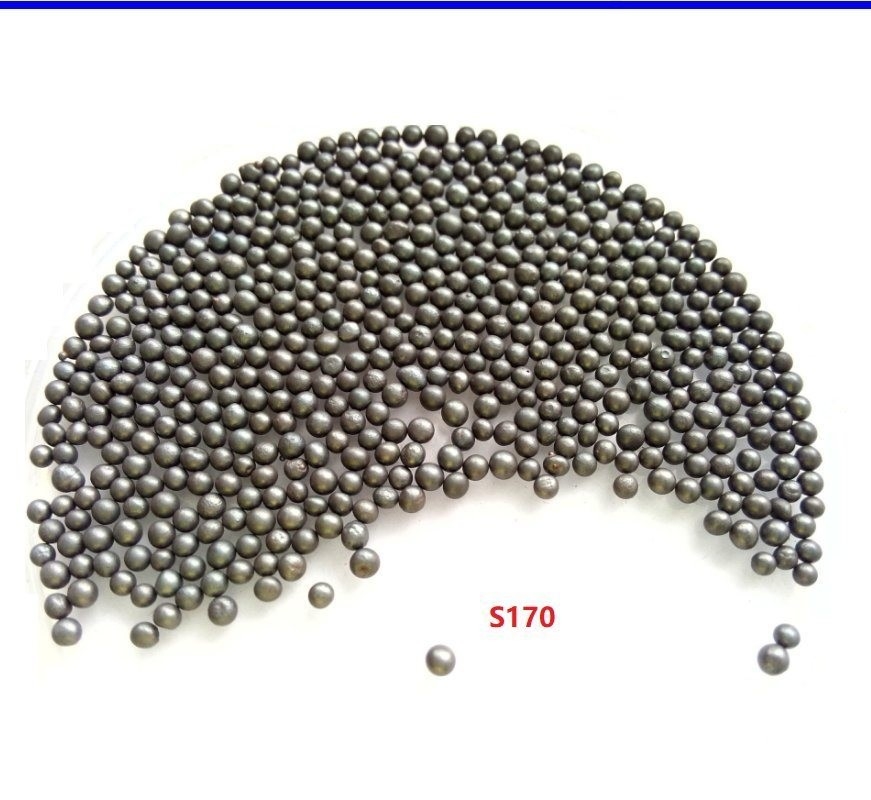

S170 steel shot refers to a steel shot with a product diameter of 0.5mm. s170 can achieve good coverage in a short time. For various castings with high requirements on the surface of the workpiece, the s170 steel shot has uniform hardness and good cleaning effect. , Durable and wear-resistant, high work efficiency.
Second, the characteristics of S170 steel shot
1. Tight organization, uniform particle size, moderate hardness, strong toughness and impact resistance.
2. Good abrasion resistance, long life, and continuous and repeatable use.
3. Uniform product, good resilience, strong adhesion and fast cleaning speed.
4. The brightness of the cleaned workpiece is large, and the processing effect is very obvious.
Four, S170 steel shot is mainly applicable to equipment
Roller type shot blasting machine, crawler type shot blasting machine, hook type shot blasting machine, roller conveyor type shot blasting machine, trolley type shot blasting machine, catenary type shot blasting machine, steel pipe inner and outer wall shot blasting machine
5. The main application scope of S110 steel shot
1. Cleaning: shot blasting, shot blasting, die castings, castings .
2. Rust removal: shot blasting, shot blasting, casting rust removal, forging rust removal, steel plate rust removal, forging rust removal, steel rust removal, H-shaped steel rust removal, steel structure rust removal.
3. Strengthening: shot peening, heat-treated parts shot peening, gear shot peening.
4. Shot peening: section steel shot peening, section steel sand blasting, ship board shot blasting, steel plate shot peening, steel shot peening.
5. Shot blasting: steel plate shot blasting, steel shot blasting, profile steel shot blasting.
6. Sand blasting: sand blasting treatment.
7. Cast steel shot pretreatment: pretreatment for painting, pretreatment for painting, surface pretreatment, shipboard pretreatment, section steel pretreatment, steel pretreatment, steel plate pretreatment, steel structure pretreatment.
Contact person: Leader wang
S170 steel shot refers to a steel shot with a product diameter of 0.5mm. s170 can achieve good coverage in a short time. For various castings with high requirements on the surface of the workpiece, the s170 steel shot has uniform hardness and good cleaning effect. , Durable and wear-resistant, high work efficiency.
Second, the characteristics of S170 steel shot
1. Tight organization, uniform particle size, moderate hardness, strong toughness and impact resistance.
2. Good abrasion resistance, long life, and continuous and repeatable use.
3. Uniform product, good resilience, strong adhesion and fast cleaning speed.
4. The brightness of the cleaned workpiece is large, and the processing effect is very obvious.
| mesh | mm | Specifications of steel shot | ||||||||||
| SS-2.5 | SS-2.0 | SS-1.7 | SS-1.4 | SS-1.2 | SS-1.0 | SS-0.8 | SS-0.6 | SS-0.5 | SS-0.3 | SS-0.2 | ||
| 7 | 2.80 | All pass | ||||||||||
| 8 | 2.36 | All pass | ||||||||||
| 10 | 2.00 | 85%min | All pass | All pass | ||||||||
| 12 | 1.70 | 97%min | 85%min | 5%max | All pass | |||||||
| 14 | 1.40 | 97%min | 85%min | 5%max | All pass | |||||||
| 16 | 1.18 | 97%min | 85%min | 5%max | All pass | |||||||
| 18 | 1.00 | 96%min | 85%min | 5%max | All pass | |||||||
| 20 | 0.850 | 96%min | 85%min | 10%max | All pass | |||||||
| 25 | 0.710 | 96%min | 85%min | 10%max | ||||||||
| 30 | 0.600 | 96%min | 85%min | All pass | ||||||||
| 35 | 0.500 | 97%min | 10%max | |||||||||
| 40 | 0.425 | 85%min | All pass | |||||||||
| 45 | 0.355 | 97%min | 10%max | |||||||||
| 50 | 0.300 | 80%min | ||||||||||
| 80 | 0.180 | 90%min | 80%min | |||||||||
| 120 | 0.125 | 90%min | ||||||||||
| 200 | 0.075 | |||||||||||
| 325 | 0.045 | |||||||||||

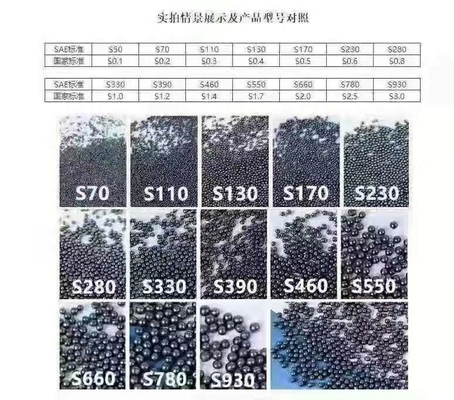

| SAE J444 | S-780 | S-660 | S-550 | S-460 | S-390 | S-330 | S-280 | S-230 | S-170 | S-110 | S-70 | |
| Name | Cast steel shot | Cast steel grit | Steel cut wire shot | Conditional cut wire shot | HQ cast steel shot | |
| Chemical composition | C | 0.80-1.20% | 0.45-0.85% | 0.45-0.85% | 0.80-1.20% | |
| Mn | 0.35-1.20% | 0.30-1.30% | 0.30-1.30% | 0.35-1.20% | ||
| Si | ≥0.40 | 0.15-0.35% | 0.15-0.35% | ≥0.40 | ||
| S | ≤0.05% | ≤0.05% | ≤0.05% | ≤0.05% | ||
| P | ≤0.05% | ≤0.04% | ≤0.04% | ≤0.05% | ||
| hardness | Routine:40-50HRC | GP steel grit 42-52HRC | 1.0mm:42-53HRC | 45-60HRC | Routine:42-47HRC Special:52-56HRC Special:56-60HRC | |
| Special:52-56HRC | GP steel grit 53-60HRC | 1.5mm:41-45HRC | ||||
| Special:56-60HRC | GP steel grit 60-64HRC | |||||
| Hardness deviation | The max deviation range:±3.0HRC | |||||
| Tensile intensity | - | 1300-2200Mpa | 2200-2800Mpa | - | ||
| Durability | 2000-28000 times | 3300-4000times | 4000times | 2800-3300times | ||
| Microstructure | Tempered martensite or sorbite | Deformed pearlite | Deformed sorbite | Tempered martensite or sorbite | ||
| Density | 7.4g/cm3 | 7.6g/cm3 | 7.8g/cm3 | 7.8g/cm3 | 7.4g/cm3 | |
| Bulk density | 4.4g/cm3 | 4.2g/cm3 | 4.5g/cm3 | 4.5g/cm3 | 4.4g/cm3 | |

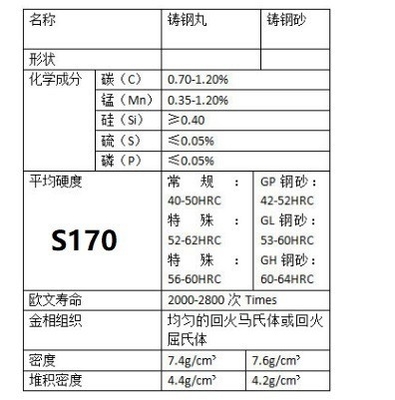

Three, S170 steel shot composition table
