Rust Removal Level S2.5-3.0 Continuous Wire Stock Shot Blasting Machine for Spring Steels
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PMW-DX3-30/38 | Fuel: | Electric |
|---|---|---|---|
| Type: | Metal Surface Derusting | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Rust Cleaning Equipment |
| Condition: | New | Customized: | Customized |
| The Max Diameter: | 130mm | Impeller Power: | 37/30/22 Kw/Piece |
| Impeller Head Quantity: | 3-4 Sets | Rust Removal Level: | S2.5-3.0 |
| Transport Package: | Foam, Pallet Or Customer Customized | Specification: | Customized |
| Trademark: | Pumingwei | Origin: | China |
| Supply Ability: | 100sets Per Years | Customization: | Available |
| After-sales Service: | Technical Support For Customer | Warranty: | One Year |
Product Description
Through continuous wire rod shot blasting machine for single wire
This machine is a special equipment for cleaning metal wire,and clean the oxide of the surface of wire with shot blasting process . After shot blasting, all the surface rust removal grades of the workpiece reaches Sa2.5-3.0 ,and smooth and no scuffing both inside and outside,it has the characteristics of economy, environmental protection and high efficiency are uniform, no scratches, compared to pickling treatment.

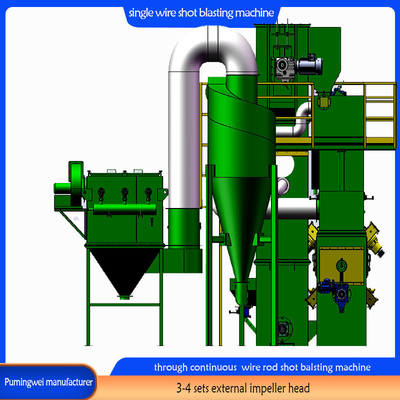

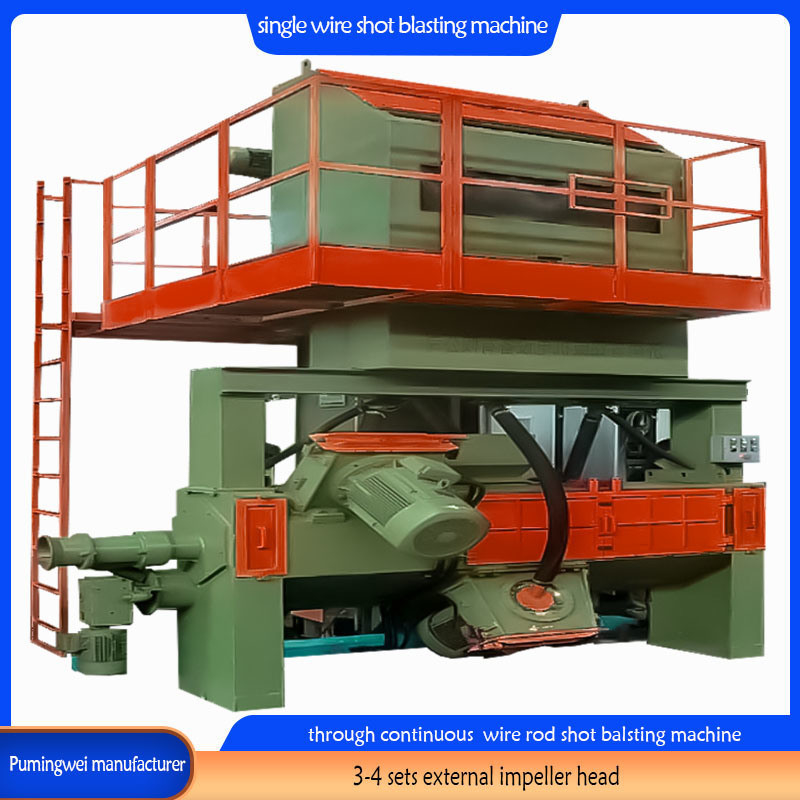

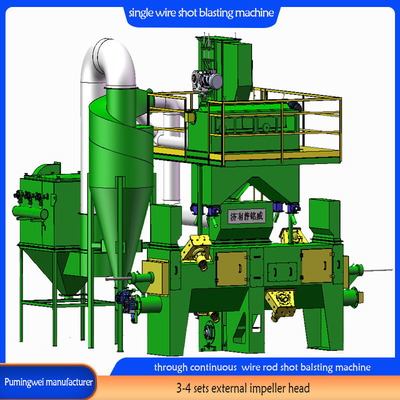

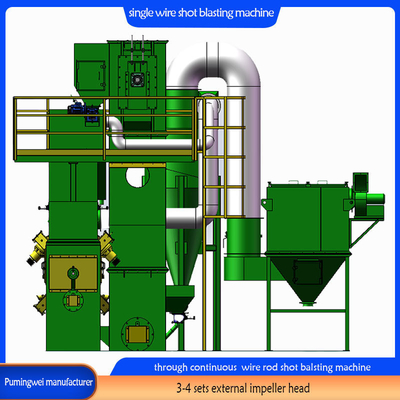

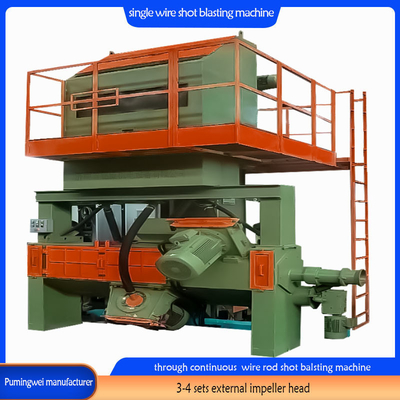

The machine adopts the working mode which single wire continuously passes through the shot area,which four high-efficiency impeller head are placed outside the chamber for running 360 degree shot blasting of wire ,and can be varied to obtain thoroughly cleaning.
The machine adopts PLC controlling system with convenient and reliable operation.
This machine is a special equipment for cleaning metal wire,and clean the oxide of the surface of wire with shot blasting process . After shot blasting, all the surface rust removal grades of the workpiece reaches Sa2.5-3.0 ,and smooth and no scuffing both inside and outside,it has the characteristics of economy, environmental protection and high efficiency are uniform, no scratches, compared to pickling treatment.
The machine adopts the working mode which single wire continuously passes through the shot area,which four high-efficiency impeller head are placed outside the chamber for running 360 degree shot blasting of wire ,and can be varied to obtain thoroughly cleaning.
The machine adopts PLC controlling system with convenient and reliable operation.
The mail technical parameters and specifications as folloows:
Shot blasting cleaning system
| Number | Item name | unit | Numeric value | Notes | |
| 1 | Impeller head | quantity | set | 4 | 1.connection technology with electric motor belt 2.wear resistant parts are wear resistant materials 3.the max impeller head speed 80m/s(adjustable frequency conversion) 4.oil nozzle adding outside impeller head 5.control cage angle labeling can adjust shot angle 6.wear resistant parts hardness HRC≥60-65 |
| model | / | PQ033Z | |||
| The max shot blasting rate | kg/min | 4×300=1200 | |||
| Impeller width | mm | 60 | |||
| power | kW | 4×22=88 | |||
| 2 | cabinet | quantity | Piece | 1 | Protection liner plate is wear resistant steel plate |
| Wearing plate | / | Wearable alloy material | |||
| 3 | curtain separator | quantity | set | 1 | |
| Separation volume | t/h | 80 | |||
| Separation rate | % | 99.9 | |||
| form | adjustable curtain air separation | ||||
| power | 1.5kw | ||||
| 4 | Bucket type lifter | Quantity | set | 1 | 1.Bending composite shell technology 2.Status inspection 3.Prevent belt from reversing 4.The belt is 10 layers of canvas belt with life of about 5000h and the max heat resistance of 150degree |
| Lifting capacity | t/h | 80 | |||
| Lifting speed | m/s | 1.4 | |||
| power | kW | 5.5 | |||
| 5 | screw conveyor at the bottom | quantity | Set | 1 | 1.Status inspection 2.Spiral piece is made of 16Mn wear resistant materials |
| Conveying capacity | t/h | 80 | |||
| Screw diameter | mm | 250 | |||
| power | kW | 3 | |||
| 6 | Steel shot controller | Quantity | set | 4 | |
| Rate of flow(max) | kg/min | 4×300 | |||
| Control type | / | ADJ | |||
| Control type | / | Air operated | |||
| 7 | Abrasive automatic supplementary device | set | 1 | When the steel shot abrasive inside sandblasting machine reach the lower limit, supply tank with the external steel shot abrasive can automa tically feed into the body tank so as to reduce the frequent feeding by the operator. | |
| 8 | power | kW | 98 | ||
| number | Item name | Unit | Numeric value | Notes | ||
| 1 | dusting method | inertial settling+pulse cartridge filtering | 1.Use pulse back blowing ash cleaning technology 2.Blower adopts damping way 3.Electronic monitoring,temperature pressure difference monitoring. 4.install flame retardant supply device of calcium carbonate | |||
| 2 | dedusting air volume | m³/h | 6000-8000 | |||
| 3 | filter cartridge duster | Filter cartridge quantity | piece | 9 | ||
| Filter area | m2 | 180 | ||||
| 4 | Dust collection efficiency | % | ≥99.9 | |||
| 5 | exterior dust emission concentration(particle) | mg/m³ | <10.0 | |||
| 6 | Noise standard | dB | ≤85 | |||
| 7 | Power | kW | 7.5 | |||
| 8 | abrasive | Cast steel shot | Optional specification according to surface requirement | |||
| Number | Item name | Unit | Numeric Value | Notes |
| 1 | System pressure | MPa | 0.4-0.6 | |
| 2 | Air consumption | m3/min | ~1.0 | provided by user |
