High Cleanliness PMW5500 Wire Rod Coil Shot Blasting Machine with 3600 Kg/Min Capacity
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | PMW5500 | Fuel: | Electric |
|---|---|---|---|
| Type: | Wire Rod Coild Shot Blasting Machine | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Rust / Corrosion Proof |
| Condition: | New | Customized: | Customized |
| Impeller Head Power: | 30kw/Set | Derusting Cost: | 18-35RMB/T |
| Production Efficiency: | 4-9coils Per Hour | Wire Loss: | 0.2-0.3% |
| Transport Package: | Nuded Cargo | Specification: | 12.5*5.5*6.4m |
| Trademark: | Pumingwei | Origin: | China |
| Supply Ability: | 50 Sets Per Year | Customization: | Available |
| After-sales Service: | One Year | Warranty: | One Year |
Product Description
The equipment adopts a unique "turnover door+pin-ended" to carry the wire rod working mode. Simply supported shaft (pin ended)is made of special alloy steel,and the main shaft has the function of automatic dispersing the wire ,it is composed of organic whole in the normal working with pin-ended(simply supported shaft), the design of simply supported shaft greatly improves the service life of the main shaft compared with cantilever shaft .It is also a patented product of our company (patent No. : 201620372463.5). In the process of shot, the device makes wire operate compound action of up and down + side to side + positive and negative rotation to achieve the effect of thorough cleaning. The reasonable arrangement of impeller head have resulted in effective blasting of steel shot in the inner and outer surfaces of wire,the machine is controlled by PLC, and the operation is convenient and reliable.
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 60,000-120,000 each year |
| Wire diameter | 5.5-42mm |
| Equipment size | 12.5*5.5*6.4m(overground height) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about18-35RMB/T |
| Production efficiency | 4-9coils/per hour |
| Number | Item name | unit | Numeric value | Notes | |
| 1 | Impeller head | quantity | set | 8 | 1.connection technology with electric motor belt 2.wear resistant parts are wear resistant materials 3.frequency impeller head speed control |
| model | / | Q035 | |||
| The max shot blasting rate | kg/min | 8×450=3600 | |||
| Impeller width | mm | 80 | |||
| power | kW | 8×30=240 | |||
| 2 | cabinet | quantity | Piece | 1 | Protection liner plate is wear resistant steel plate |
| Wearing plate | / | Wearable alloy material | |||
| 3 | curtain separator | quantity | set | 2 | |
| Separation volume | t/h | 2*120=240 | |||
| Separation rate | % | 99.9 | |||
| form | adjustable curtain air separation | ||||
| 4 | Bucket type lifter | Quantity | set | 2 | 1.Bending composite shell technology |
| Lifting capacity | t/h | 240 | |||
| Lifting speed | m/s | 1.22 | |||
| power | kW | 2*11 | |||
| 5 | screw conveyor at the bottom | quantity | Set | 2 | Equipping with inspection status |
| Conveying capacity | t/h | 240 | |||
| Screw diameter | mm | 320 | |||
| power | kW | 2*5.5 | |||
| 6 | Steel shot controller | Quantity | set | 8 | |
| Rate of flow(max) | kg/min | 8×450 | |||
| Control type | / | ADJ | |||
| Control type | / | Air operated | |||
| 7 | power | kW | 165 | ||

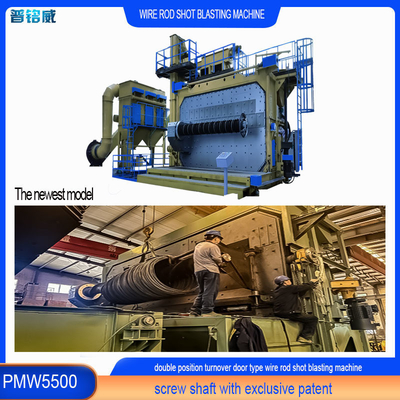

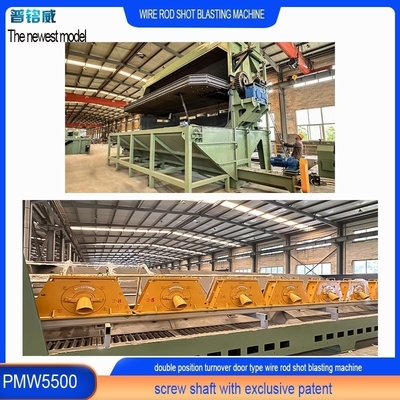

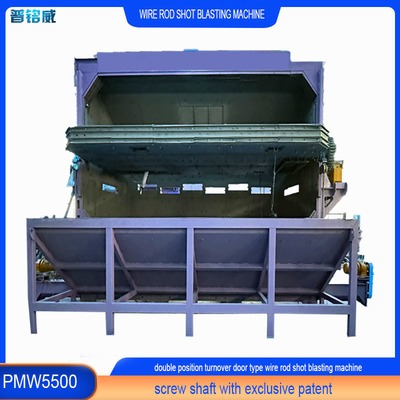

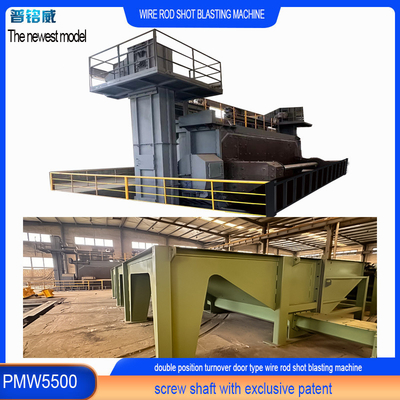

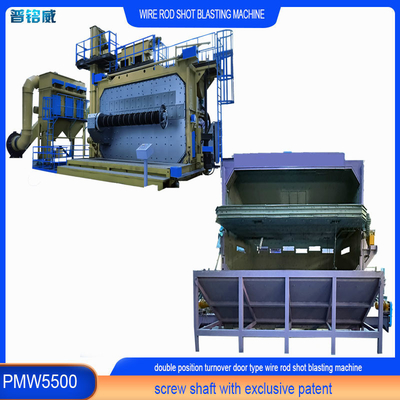

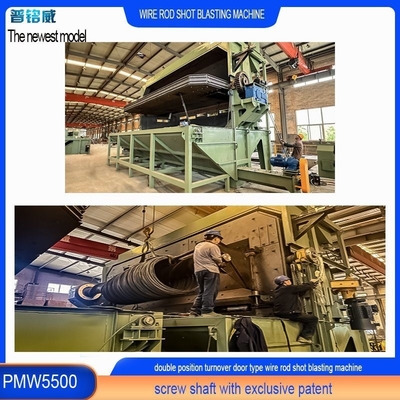

PMW5500 double position turnover door wire rod shot blasting machine
1.Environmentally-friendly technology instead of pickling.
2.Remote control,easy operation.
3.To disperse the wire automatically,even,high effective
and lowl abor intensity for operator.
4.Ultra-low emission:3mg/m³.
5.Widely used in (high,medium,low) carbon steel,alloy
steel,stainless steel and others.
6.Good work environment and negative pressurewithin equipment.
7.Can be customized according to customer products.
1. High-performance wear-resistant materials
(1) Wear-resistant parts of the shot blasting chamber - protected by high-wear alloy materials.
(2) Main wear-resistant parts of the shot blaster - made of high-chromium castings to extend their service life.
2. Efficient shot blaster
(1) Easy and convenient blade disassembly: The blades are inserted from the center of the impeller and fixed by centrifugal force generated by impeller, body ,without any fixing tools required for disassembly, making it simple and convenient.
(2) Eight are installed at the back and sides of the machine body, drive method has several advantages:
1) Reduces vibration.
2) Allows for adjusting the to requirements.
3) Extends motor bearing lifespan.
3. Rigorous sealing technology - The shot blasting chamber is welded with steel plates and structural steel to ensure sufficient rigidity and strength. The door adopts a labyrinth seal design.
4. Full-curtain shot residues separation system - This machine adopts an advanced full-curtain shot residues separation system with a manually adjustable mechanism that controls curtain thickness for optimal separation efficiency, achieving a separation rate of ≥99.9%.
1.Production time: 20-40 days or half years according to different type.
2.the time of installation and debugging: 10-15 days.
3.Installation and debugging: We will dispatch 1-2 technicians to help with machine installation and debugging, customer pays for their tickets, hotel and diet.
4. Warranty time: 12 months from date of debugging completion, but not exceed18 months from date of delivery.
5. Payment term: 30% as prepayment, balance 70% before delivery or L/C at sight.
6. English documents: including total installation drawing, pit design drawing, instruction book, circuit diagram drawing and notice, etc.
1.Supplier ensure that the name, model, specification and quantity are consistent with technical agreement ,and wemake sure that all machine is new with qualifying product through perfect technology and installation,the quality is stable and reliable.There are no defects in design, material and technology,which is available for customer proposal.And meets the standard of national industry.
2.Arrange for engineer or skilled labour to installation and comissioning of equipment in overseas( except force majeure, inappropriate operation and the quick-wear parts ).
3.In order to ensure a good quality, every machine in the factory will be strict calibration and commissioning before they leave the factory.
4.We will direct the installation and operation of the equipment, and train operators for customer.
