6m Continuous Wire Rod Shot Blasting Machine for Single Mandrel Customizable Design
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | By Trial Blasting Machine | Colour: | Blue |
|---|---|---|---|
| Ramming Head: | Six | Application Scope: | Wire Rod |
| Transport Package: | Sea Transportation | Specification: | 6.6× 5.5× 6m |
| Trademark: | Pumingwei | Origin: | Jinan, China |
| Supply Ability: | 120 | Customization: | Available |
| After-sales Service: | First-Class Service | Warranty: | Year |
Product Description

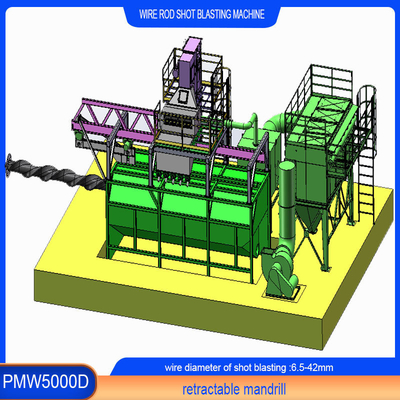

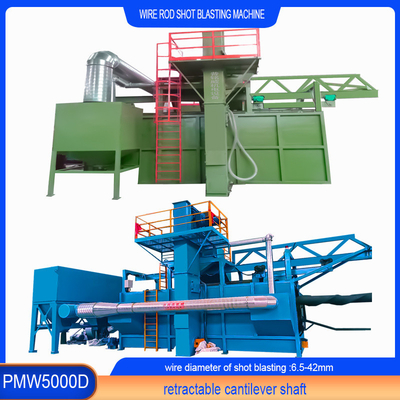

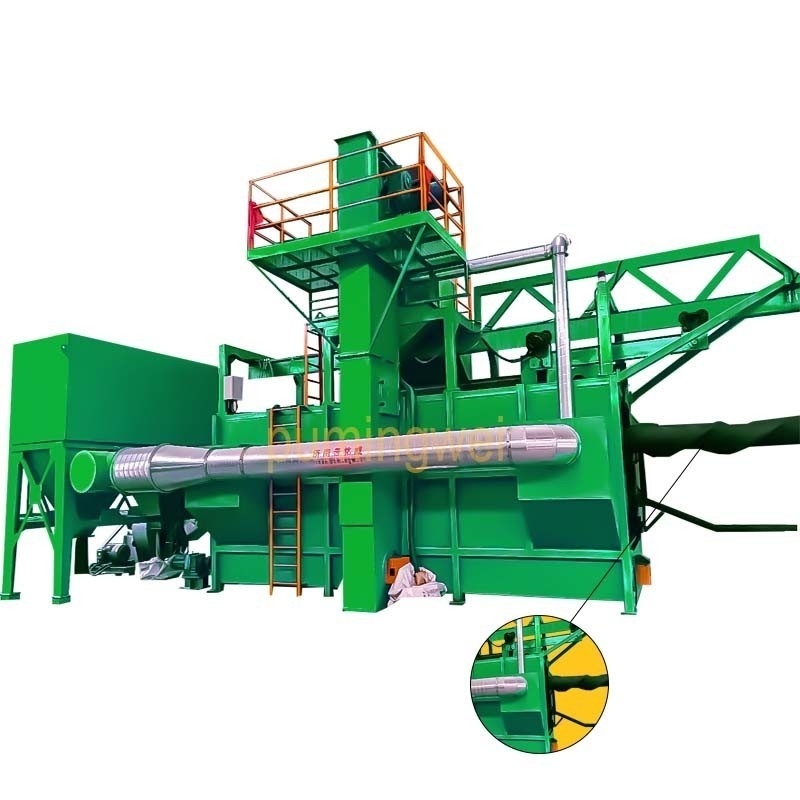

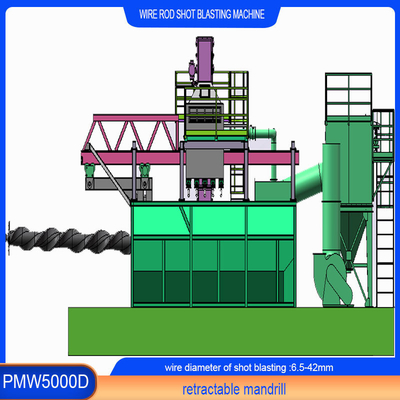

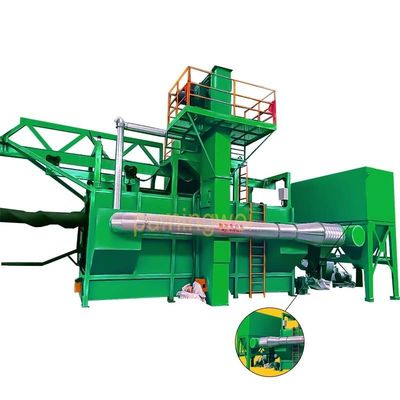

This machine is a specialized equipment for cleaning circular wire rods, which uses the shot blasting process to remove the oxide skin on the surface of the wire rods. Workpiece shot blasted
After cleaning, the rust removal level on all surfaces reaches Sa2.0-3.0, and the inside and outside are uniform and free of scratches. Compared to acid pickling treatment
It has the characteristics of economy, environmental protection, and efficiency.
The equipment adopts a dual station working mode of "switch rotating gate+simple support shaft" to carry circular wire. Cantilever axis adopts special
Made of special alloy steel, the outer sleeve of the simply supported shaft has a special device with automatic material scattering function, which is compatible with the simply supported shaft during normal operation
Composed as a whole, this device is also a patented product of our company (patent number: 201620372463.5). During the throwing process
This device performs a composite action of "up and down undulation, left and right swing, and forward and backward rotation" on the coil wire to achieve complete cleaning
Effect.
The whole machine is controlled by PLC, which is convenient and reliable to operate.
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 20,000-80,000 each year |
| Wire diameter | 8-42mm |
| Equipment size | 6.6*5.5*6m(height on the ground) |
| Wire loss | 0.2-0.3% |
| Derusting cost | about20-40RMB/T |
| Production efficiency | 2-4coils/per hour |
