16.8 * 12.4 * 5.8meters Flat Door Disc Wire Blasting Machine Pmw5300 for Customization
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | 5300 | Cleanliness: | High Cleanliness |
|---|---|---|---|
| Automation: | Automatic | Feature: | Non-Ionic |
| Condition: | New | Customized: | Customized |
| Colour: | Blue Or Green | Produce: | 7-15t |
| Transport Package: | Sea Transportation | Specification: | 16.8 * 12.4 * 5.8meters |
| Trademark: | Pumingwei | Origin: | Jinan, China |
| Supply Ability: | 120 | Customization: | Available |
| Application: | Electronic Industry | Fuel: | Electric |
Product Description

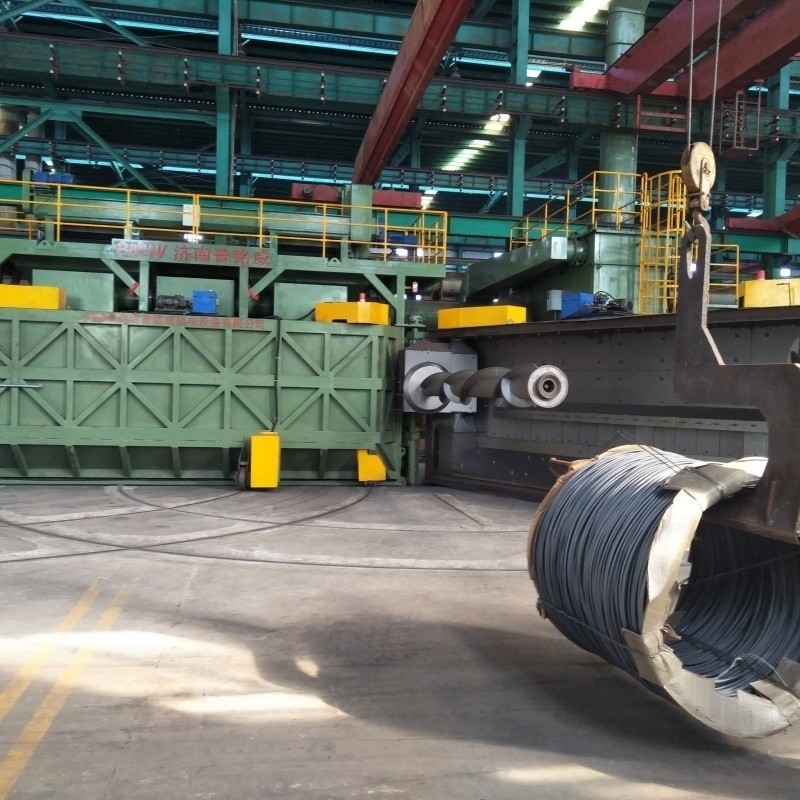

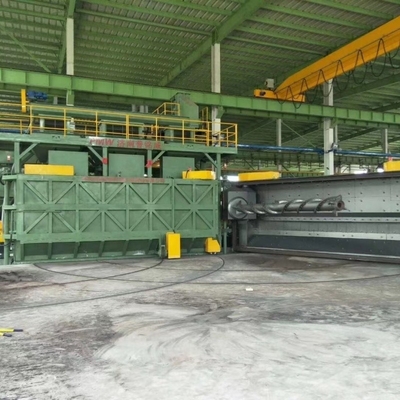

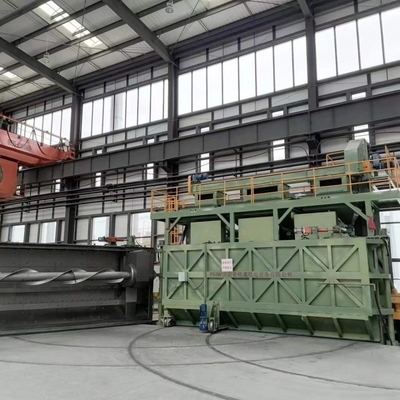

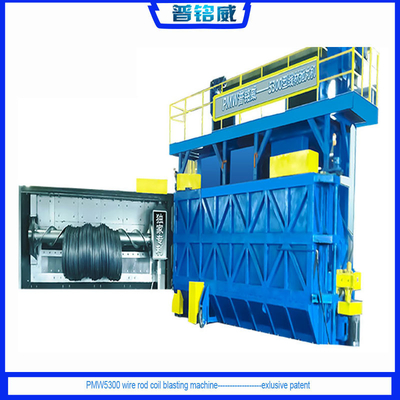

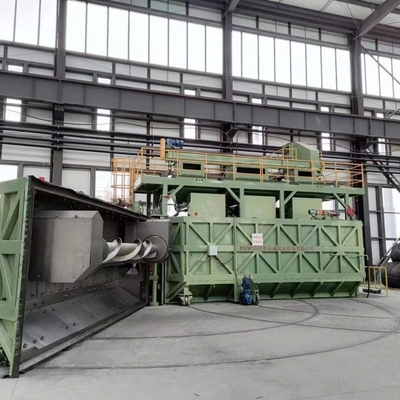

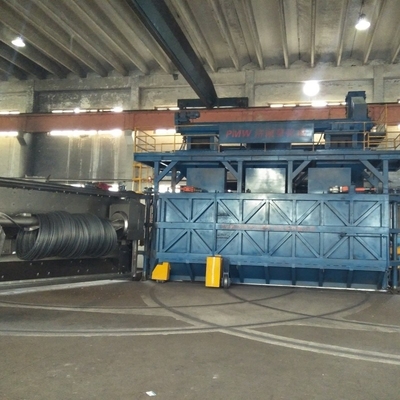

PMW-5300 double-station round wire shot blasting machine This equipment is a special equipment for cleaning the whole coil of wire rod. It uses shot blasting technology to remove impurities such as oxide scale and scale on the surface of wire rod, which is a production technology that replaces or partially replaces pickling. After shot blasting cleaning, the surface derusting grade of the workpiece reaches Sa2.0-3.0, which has the advantages of environmental protection, high efficiency and economy compared with pickling treatment. Functions and characteristics 1. The unique working mode of "opening the door horizontally+double fulcrum shaft" is adopted to carry the round wire rod. 2. The main shaft is made of special alloy steel, which makes the wire do the compound action of "up and down+left and right swing+positive and negative rotation" in the process of shot blasting cleaning, so as to achieve the effect of thorough cleaning. Compared with cantilever shaft, the design of round wire rod of double fulcrum bearing tray greatly improves the service life of spindle! 3. Using the "automatic bulk material" device with independent intellectual property rights, it can be unwound by itself. 4. Reasonable arrangement of the shot blaster can make the inner and outer surfaces of the round wire be effectively hit by the shot. 5, the whole machine is controlled by PLC, and the operation is convenient and reliable.
Jinan Pumingwei Electromechanical Equipment Co., Ltd. was incorporated on August 16th, 2013. It is located in Zhangqiu, Shandong Province, a beautiful "Xiaoquancheng" with convenient transportation and simple folk customs. It is the birthplace of "Going to the East" and the birthplace of Oriental businessman "Ruifuxiang". The company is mainly engaged in wire shot blasting machine, coil shot blasting machine, etc. We are a manufacturer specializing in the research, development, design and manufacture of shot blasting technology and equipment.
| Main technical parameters | |||||||
| serial number | Project name | numerical value | |||||
| 1 | plate circle ruler | Inch diameter | Φ5.5~Φ42mm | ||||
| Inner diameter | mm(min) | Φ750mm | |||||
| Outside diameter | mm(max) | Φ1600mm | |||||
| 2 | Shot blasting time | Φ 5.5--8mm : 10-12min/roll Φ9--12mm :8-10min/roll Φ 13--16mm: 5-8min/roll Φ>16 mm :4-5min/roll | |||||
| 3 | Maximum load | wire rod specifications | Φ5.5-Φ8mm | Φ9-Φ12mm | Φ13-Φ42mm | ||
| workpiece weight | Max Kg.2500 | Max Kg. 2500 | Max Kg. 2500 | ||||
