Automatic Single Line Shot Blasting Machine for Trial Blasting Efficiency Boost
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | By Trial Blasting Machine | Fuel: | Electric |
|---|---|---|---|
| Type: | Crawler Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Non-Toxic |
| Condition: | Used | Customized: | Customized |
| Sea Transportation: | Surface Rust Cleaning Of Wire | Rust Removal Level: | S2.5-3.0 |
| Impeller Power: | 37/30/22 Kw/Piece | Impeller Head Quantity: | 3-4 Sets |
| The Max Diameter: | 130mm | Transport Package: | Sea Transportation |
| Specification: | Customizable | Trademark: | Pumingwei |
| Origin: | Jinan, China | Supply Ability: | 120 |
| Customization: | Available | After-sales Service: | First-Class Service |
| Warranty: | Oneyear | ||
Product Description
This machine is a specialized equipment for cleaning metal wires, using shot blasting technology to remove the surface oxide skin of the wires. After shot blasting cleaning, the entire surface of the workpiece has a rust removal level of Sa2.5-3.0, and is uniform inside and outside without scratches. Compared to acid pickling treatment, it has the characteristics of economy, environmental protection, and efficiency.

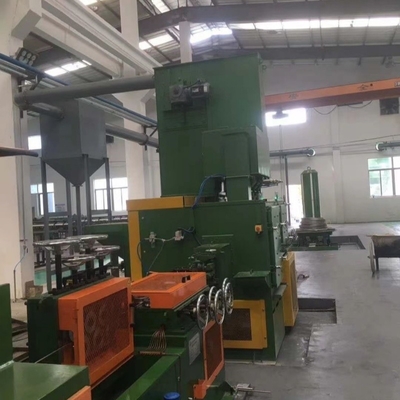

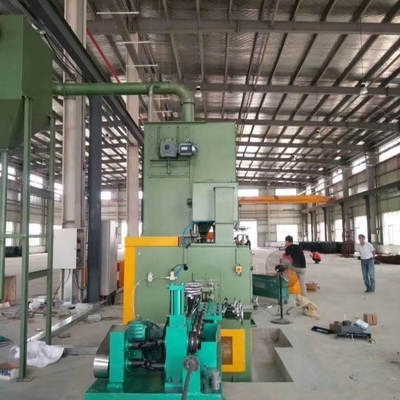

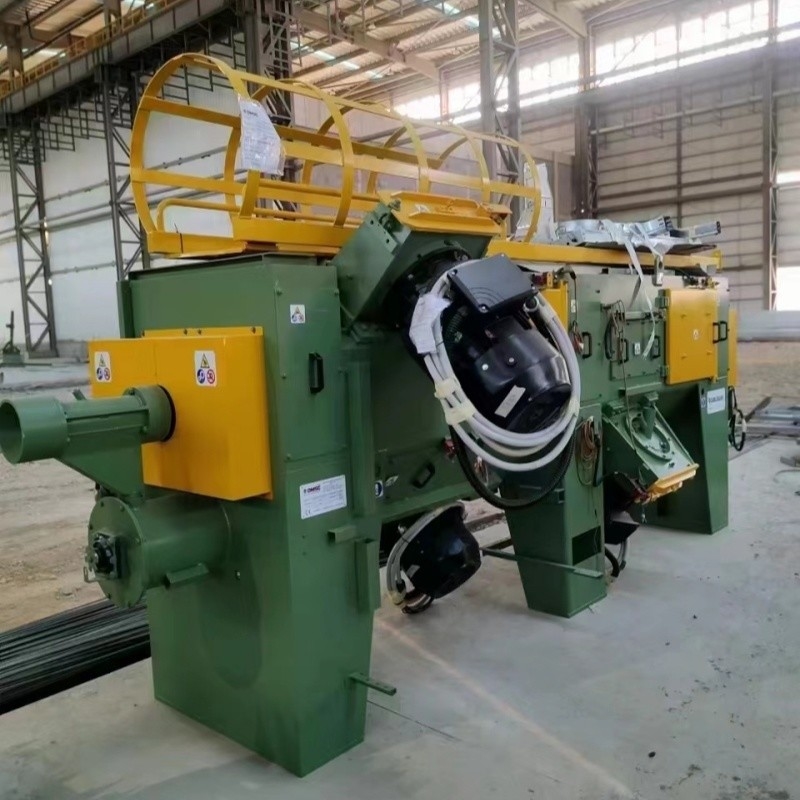

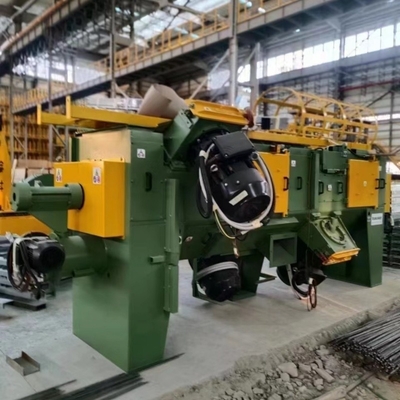

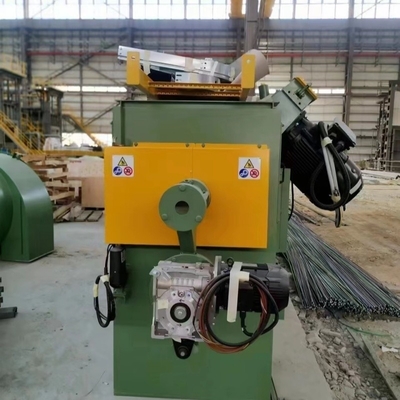

The equipment adopts a working mode where a single wire continuously passes through the blasting area, and 4 high-efficiency shot blasting machines are installed outside the room to achieve 360 ° shot blasting of the wire, achieving a thorough cleaning effect.
The whole machine is controlled by PLC, which is convenient and reliable to operate.
| Serial Number | Project Name | unit | Value | Notes | |
| 1 | shot-blasting machine | quantity | tower | 4 | 1. Machine connecting technology wood 2. Wear resistant parts are made of wear-resistant materials 3. The speed of the shot blaster is the highest 80m/s (optional); 4. Fill the external oil nozzle of the shot blaster; 5. Directional sleeve, adjustable Ejection Degree; 6. Hardness of wear-resistant parts HRC60- |
| type | / | PQ033Z | |||
| Maximum shot blasting amount | kg/min | 4×300=1200 | |||
| Blade width | mm | 60 | |||
| efficiency | km | 4×300=1200 | |||
| 2 | shot blasting room | quantity | individual | 1 | The protective lining plate is made of wear-resistant steel plate |
| wear plate | / | Wear-resistant alloy material | |||
| 3 | Full curtain separation | quantity | tower | 1 | |
| Separation amount | t/h | 80 | |||
According to the characteristics of the wire, this machine is equipped with four high-efficiency shot blasting machines, which are installed in the shot blasting room to blast and clean the wire at a speed of 60-80 meters/second. Adopting a spiral conveyor system for horizontal conveying of bullets, a high-strength belt elevator, a shot slag separation system, a two-stage purification and dust removal system (inertia+filter cartridge), and an automatic+manual human-machine interface electronic control system, the workpiece meets the requirements of efficient shot blasting cleaning.
