Critical Cleaning 20t Perfect Overhead Chain Conveyor Shot Blasting Machine with Hook

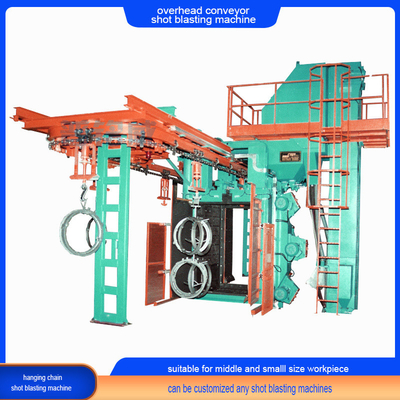

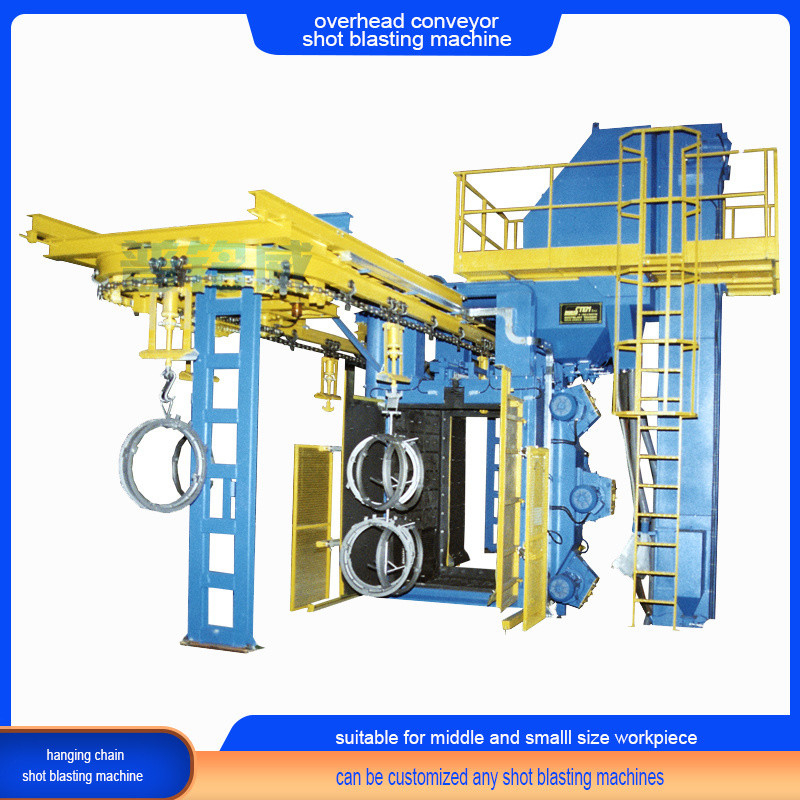

Overhead conveyor shot blasting machine with hook is typically designed to handle mixed loads of medium and large components which often include fragile and sensitive parts that cannot be tumbled in bulk loads. Overhead conveyor shot blasting machines with hook are ideal for heavy and complex shaped workpieces like: casts, welded constructions, forged and pressed parts, remodelled cold or hot and of various complicated forms, steel bottle, springs, etc. Parts can weight from 5 kg to 10,000 kg or more, manufactured in medium and large series. This type of shot blasting machines are mostly used for continuous blast cleaning, desanding and decoring in die cast industry as well for descaling, derusting and reconditioning in metalworking industry. Treated objects are hanged individually or in a cluster on revolving hooks on a closed loop conveyor going through the shot blasting machine. In the process of shot blasting the treated objects revolve and move back and forth in a jet of abrasive media, which provides best possible uniform blasting results.
spinner hanger shot blasting machine

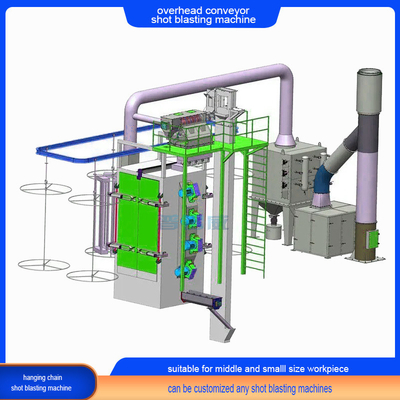

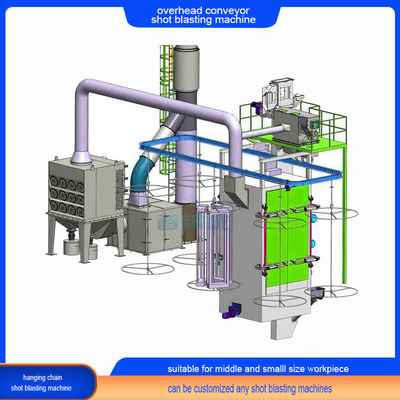

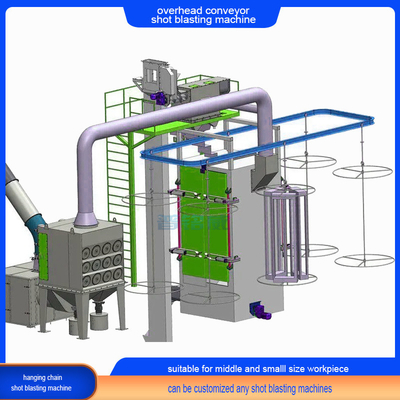

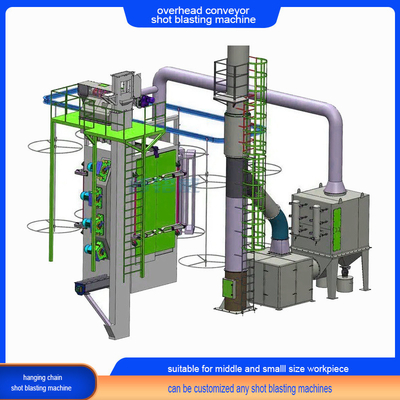

The standard overhead conveyor or spinner hanger shot blasting machines are specially developed for cleaning the surface of a wide range of work pieces. Shot blasting or grit blasting is a metal finishing process used either for preparing the surface for further processes or as a final surface finishing method. When the surface is blasted with abrasive media at high speed inside a blast cabin, the abrasive media or also known as blast media will impart the required roughness for further deposition process or remove unnecessary impurities and make the surface clean and uniform texture/tone. The pieces to be blasted are suspended either one by one or bunch-like by means of hangers fitted to trolleys sliding along a monorail. The movement of the rail trolley is automatic from the inlet position through a conveyor system inside the blast cabin.  The operator thus can stay outside and away from the cabin.
Q37series hook shot blasting machine
Hook type shot blasting machine is divided into two forms,:single hook type and double hook suitable for surface cleaning or strengthening with small and medium-sized castings, forgings, welding parts, heat treatment parts in various industries .especially suitable for cleaning and strengthening for fear of collision parts. It adopts the forms of no pit structure with compact structure, easy installation and smooth operation.
The chamber adopts a totally enclosed structure without steel shot splashing phenomenon, and there is wear resistant alloy cast iron protection plate inside chamber.
The electric hoist is used to realize the loading and unloading, lifting and walking of the workpiece, and positive and negative rotation of the workpiece inside chamber is available by the auto rotation device.

1.What is your workpiece and the material and the shape ?
2.Send me the Max.Length/Width/Height of the workpiece and the MAX./MIN.Weight of your workpiece.
3.how many tons/pieces do you need blast the workpiece per day or per month?
4.what is the power supply do you need?
5.what is the wire diameter and produc
tion name?(direct at wire rod shot blasting machine)
6.what is the workshop height?in order to install the machine
Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !

Pumingwei hook type shot blasting machine is professional,unque and irreplaceableAfter service
1.Supplier ensure that the name, model, specification and quantity are consistent with technical agreement ,and we
   make sure that all machine is new with qualifying product through perfect technology and installation,the quality is
   stable and reliable.There are no defects in design, material and technology,which is available for customer proposal.
   And meets the standard of national industry.
 2.Arrange for engineer or skilled labour to installation and comissioning of equipment in overseas
  ( except force majeure, inappropriate operation and the quick-wear parts ).
3.In order to ensure a good quality, every machine in the factory will be strict calibration and commissioning before they
   leave the factory.
4.We will direct the installation and operation of the equipment, and train operators for customer.

1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. can be provided our customers with exclusive and unique solution by our well-trained   and professional engineers and staff.
5. Special discount and protection of sales will be provided to our distributor.
6. Professional factory: We are largest manufacturer, specializing in producing all kinds of Shot Blasting Machine & Metal Abrasive and so on in China, competitive with good quality products
7. As an honest and more experience seller, we always use superior raw material, advanced machines, skilled technicians to ensure that our products will be designed in high quality and stable performance.
8.we have more than 30 patents with shot blasting machine(36 patents with wire rod shot blasting machine)
9.we have R&D capability with all kinds of shot blasting equipment.
If the above model is not suitable for your workpiece, please tell us your requirement and then we can send you the most satisfying drawing.


1. Available for large inner cleaning space, overall cohesiveness of design . Can be designed and manufactured according to the demands
2. Can be used for different kinds of workpieces.
3. Widely used in cleaning and strengthening for forging parts building,chemical,motor and small castings.
4. The pre-heating and drying part adopt various heating modes, such as electricity, fuel gas, fuel oil and so on.
5. Can be equipped as a part of a processing line.
6. Complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced level.
