Customized Q3210 Multiple Colors Crawler Belt Shot Blasting Machine for Small Forgings
Product Details:
| Place of Origin: | China |
| Certification: | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, HSE, QC 080000, BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 500 Sets Per Years |
|
Detail Information |
|||
| Model NO.: | Q3210 | Fuel: | Electric |
|---|---|---|---|
| Type: | Crawler Abrator | Cleanliness: | High Cleanliness |
| Automation: | Automatic | Feature: | Cleaning Workpiece Surface |
| Condition: | New | Customized: | Customized |
| Color: | Yellow And Blue And So On | Production Rate: | 2.0-2.8t/H |
| The Max Single Weight: | 25kg | Total Power: | 26 |
| Transport Package: | Foam, Pallet Or Customized | Specification: | Customized |
| Trademark: | Pumingwei | Origin: | China |
| Supply Ability: | 300sets/Each Year | Customization: | Available |
| After-sales Service: | One Year | Warranty: | One Year |
Product Description

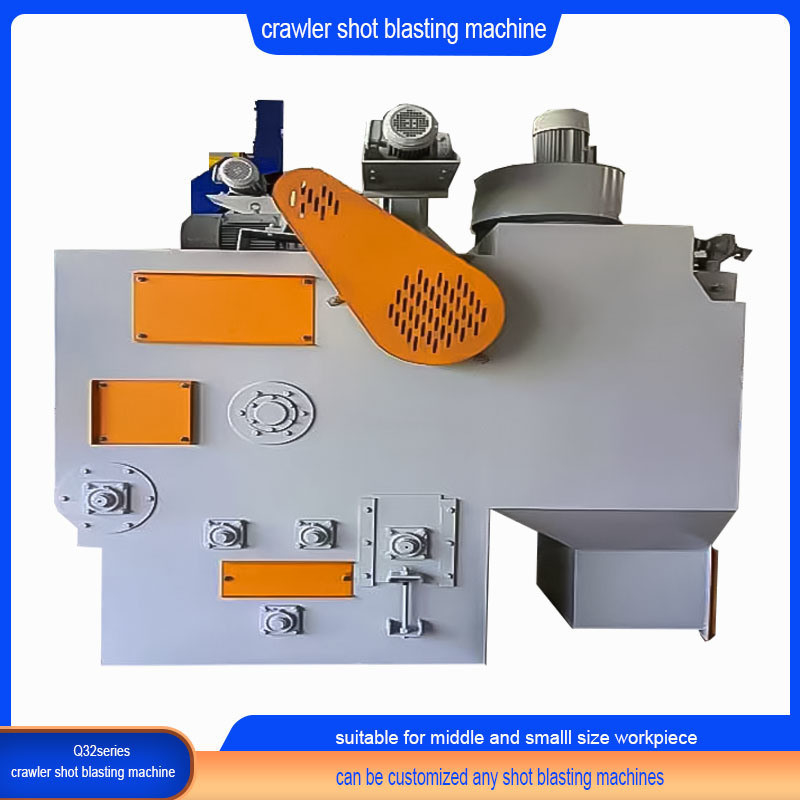

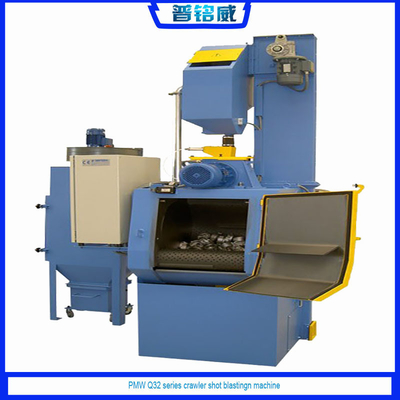

Q32series crawler shot blasting machine
The crawler type shot blasting machine is suitable for surface rust removal or shot blasting strengthening of multi-variety, medium and small batch production workpieces. Which must be not fear of collision castings and heat treatment parts, application scope: die casting, precision castings, precision forgings and other cleaning.and oxide layer for removal of heat treatment parts, castings, forgings, spring and fastener. The machine can not clean the workpiece with high temperature or flash burr, otherwise the crawler belt will be damaged. Automatic loading and unloading device can be designed to reduce labor intensity and improve production efficiency.
| Type Parameter | Q326 | Q327 | Q328 | Q329 | Q3210 | Q3211 | Q3213 |
| The max weight of one piece/kg | 10 | 34 | 34 | 60 | 70 | 80 | 250 |
| Production rate(T/h) | 0.6-1.2 | 2.5-5 | 2.5-5 | 2.5-5 | 4.5-9 | 8-16 | 6-8 |
| The max loading capacity/kg | 200 | 480 | 480 | 480 | 800 | 1400 | 1500 |
| Diameter of roller/mm | 600 | 737 | 800 | 900 | 1000 | 1092 | 1250 |
| Diameter of distance/mm | 900 | 940 | 940 | 1050 | 1200 | 1245 | 1200 |
| Dedusting air volume(cubic meter /h) | 2200 | 1800 | 1800 | 3000 | 5000 | 5300 | 5200 |
| Shot processing capacity of circulation system/(t/h) | 9 | 15 | 15 | 15 | 16 | 18 | 16.7 |
| Impeller head quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Single abrasive flow rate(kg/min) | 200 | 230 | 230 | 220 | 270 | 480 | 300 |
| Single power/kw | 7.5 | 11 | 11 | 11 | 15 | 30 | 18.5 |
| Total power/kw | 12.6 | 16.6 | 16.6 | 16.6 | 27.27 | 36.1 | 32 |
| Overall dimension/mm | 3681*1650*5800 | 3770*1810*5700 | 3798*1850*4108 | 3770*1810*5700 | 5510*4100*4705 | 4597*3262*5709 | 5500*3500*5808 |
